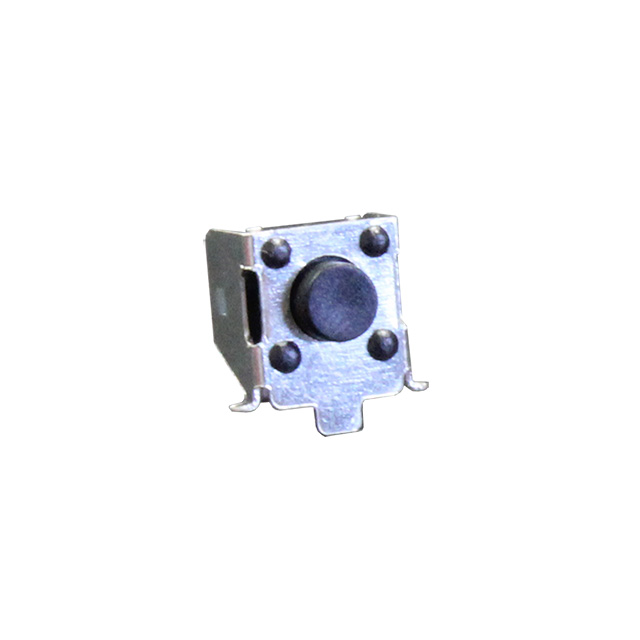

CS1102V3.15F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CS1102V3.15F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CS1102V3.15F260

Actuator Length, Right Angle	3.15 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Side Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount, Right Angle
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.1 mm
Outline [y]	6.3 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

CS1102V Series

Part	Mounting Type	Actuator Orientation	Actuator Material	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Termination Style	Contact Rating @ Voltage	Illumination	Circuit	Actuator Height off PCB, Vertical [z]	Operating Force	Switch Travel	Actuator Length, Right Angle	Actuator Length, Right Angle [x]	Actuator Height off PCB, Vertical
CIT Relay and Switch CS1102V11.85F160	Through Hole	Top Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	PC Pin	0.05 A 50 VDC	Non-Illuminated	SPST-NO	11.85 mm
CIT Relay and Switch CS1102V3.85F100	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	7.1 mm	7.5 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		100 gf	0.25 mm	3.85 mm
CIT Relay and Switch CS1102V3.15F260	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		260 gf	0.25 mm	3.15 mm
CIT Relay and Switch CS1102V5.85F260	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		260 gf	0.25 mm		5.85 mm
CIT Relay and Switch CS1102V11.85F260	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		260 gf	0.25 mm		11.85 mm
CIT Relay and Switch CS1102V6.85F260	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		260 gf	0.25 mm	6.85 mm
CIT Relay and Switch CS1102V11.85F100	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		100 gf	0.25 mm		11.85 mm
CIT Relay and Switch CS1102V8.35F160	Through Hole	Top Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	PC Pin	0.05 A 50 VDC	Non-Illuminated	SPST-NO						8.35 mm
CIT Relay and Switch CS1102V8.35F260	Surface Mount Right Angle	Side Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	Gull Wing	0.05 A 50 VDC	Non-Illuminated	SPST-NO		260 gf	0.25 mm	8.35 mm
CIT Relay and Switch CS1102V3.15F160	Through Hole	Top Actuated	Nylon 4/6 Polyamide (PA46)	Standard	Off-Mom	85 °C	-40 °C	6.3 mm	7.1 mm	PC Pin	0.05 A 50 VDC	Non-Illuminated	SPST-NO						3.15 mm
