BU-1010-A-12-2

Active

Mueller Electric Co

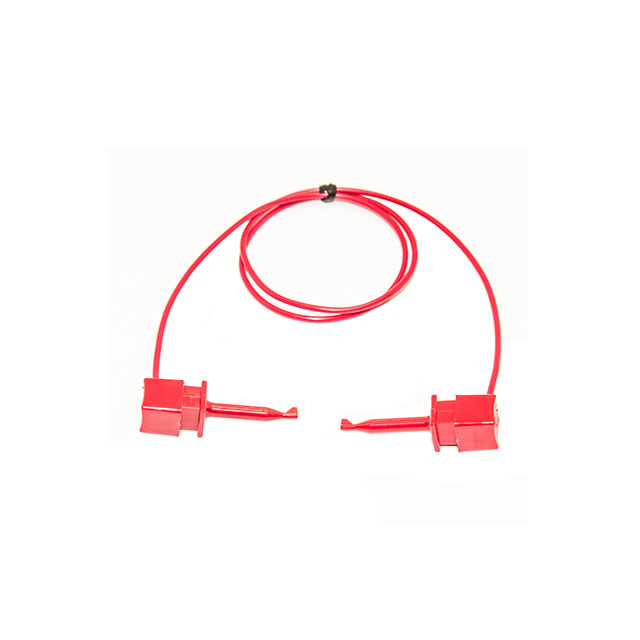

RED MICRO-PLUNGER CLIP ON BOTH ENDS, 12" 20G PVC

Search across all available documentation for this part.

Active

Mueller Electric Co

RED MICRO-PLUNGER CLIP ON BOTH ENDS, 12" 20G PVC

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Wire Gauge	Contents [custom]	Contents	Configuration	Material - Insulation	2nd Connector	Temperature Range	Temperature Range	Cable Length	Cable Length	Voltage - Rated
Mueller Electric Co BU-1010-A-60-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	1524 mm	5 ft	300 V
Mueller Electric Co BU-1010-A-12-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	304.8 mm	12 in	300 V
Mueller Electric Co BU-1010-A-48-0	5 A	20 AWG		1 Lead Black	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	1219.2 mm	48 in	300 V
Mueller Electric Co BU-1010-A-12-0	5 A	20 AWG		1 Lead Black	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	304.8 mm	12 in	300 V
Mueller Electric Co BU-1010-A-36-0	5 A	20 AWG		1 Lead Black	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	914.4 mm	36 in	300 V
Mueller Electric Co BU-1010-A-24-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	609.6 mm	24 "	300 V
Mueller Electric Co BU-1010-A-48-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	1219.2 mm	48 in	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Micro Hook To Micro Hook Test Lead 300V 1 Lead, Red
