BU-1010-A-36-0

Active

Mueller Electric Co

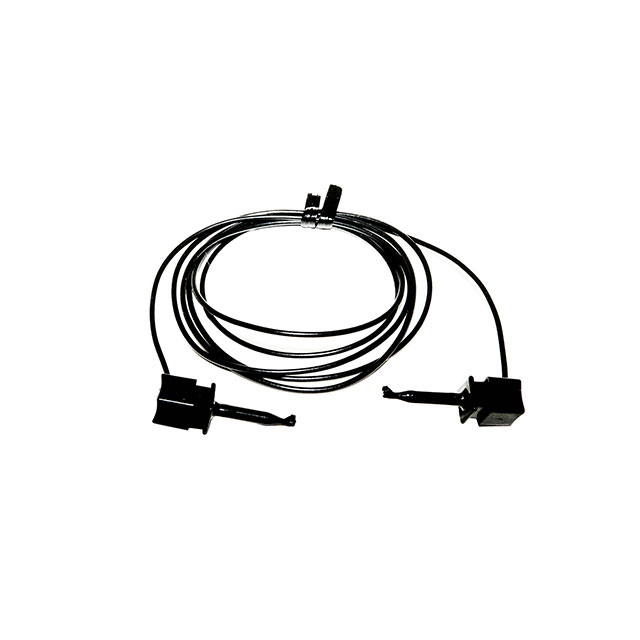

TEST LEAD, HOOK CLIP TO HOOK CLIP, BLACK, 300 V, 5 A, 914.4 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

BU-1010-A-36-0

Active

Mueller Electric Co

TEST LEAD, HOOK CLIP TO HOOK CLIP, BLACK, 300 V, 5 A, 914.4 MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-1010-A-36-0

2nd Connector	Micro Hook
Cable Length	36 in
Cable Length	914.4 mm
Configuration	Hook to Grabber, Hook, Grabber
Contents	1 Lead, Black
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C
Temperature Range	221 °F
Voltage - Rated	300 V
Wire Gauge	20 AWG

BU-1010 Series

Part	Current Rating (Amps)	Wire Gauge	Contents [custom]	Contents	Configuration	Material - Insulation	2nd Connector	Temperature Range	Temperature Range	Cable Length	Cable Length	Voltage - Rated
Mueller Electric Co BU-1010-A-60-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	1524 mm	5 ft	300 V
Mueller Electric Co BU-1010-A-12-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	304.8 mm	12 in	300 V
Mueller Electric Co BU-1010-A-48-0	5 A	20 AWG		1 Lead Black	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	1219.2 mm	48 in	300 V
Mueller Electric Co BU-1010-A-12-0	5 A	20 AWG		1 Lead Black	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	304.8 mm	12 in	300 V
Mueller Electric Co BU-1010-A-36-0	5 A	20 AWG		1 Lead Black	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	914.4 mm	36 in	300 V
Mueller Electric Co BU-1010-A-24-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	609.6 mm	24 "	300 V
Mueller Electric Co BU-1010-A-48-2	5 A	20 AWG	1	Red	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride (PVC)	Micro Hook	105 °C	221 °F	1219.2 mm	48 in	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.60
Newark	Each	50	$ 14.28
		100	$ 13.85

Description

General part information

BU-1010 Series

The BU-1010-A-36-0 is a Test Lead with micro-plunger clip on both ends. It accepts 20AWG tinned copper with 105°C PVC insulated hook-up wire. The plunger has nylon housing, stainless steel spring and beryllium copper contact.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
