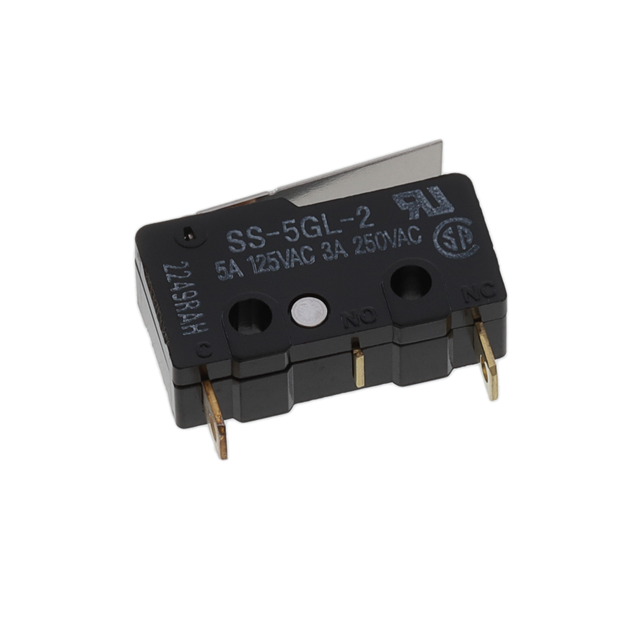

SS-5GL-2
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NC 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SS-5GL-2
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NC 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-5GL-2 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NC |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.8 mm |
| Differential Travel | 0.031 " |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 30000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 50 gf |
| Operating Position | 8.8 mm |
| Operating Position | 0.345 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.2 mm |
| Overtravel | 0.047 " |
| Release Force | 6.118 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.03 | |
| 10 | $ 1.87 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.37 | |||
Description
General part information
SS-5GL Series
Switch SPST-NC Chassis Mount
