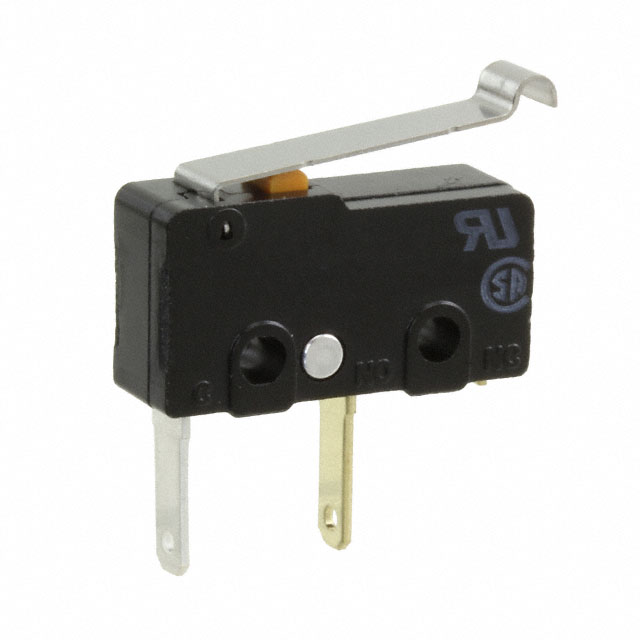

SS-5GL13-F-3-T

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 5A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Force	Operating Position	Operating Position	Release Force	Mechanical Life	Switch Function	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life	Termination Style	Voltage Rating - AC	Ingress Protection	Differential Travel	Differential Travel	Current Rating (Amps)	Overtravel	Overtravel
Omron Electronics Inc-EMC Div SS-5GL111-2T	Chassis Mount	40 gf	8.8 mm	0.345 in	3.059 gf	30000000 Cycles	On-Mom	SPST-NC	-25 °C	85 °C	Lever Straight	200000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	IP40	0.047 in	1.2 mm	5 A	1.2 mm	0.047 "
Omron Electronics Inc-EMC Div SS-5GL-2	Chassis Mount	50 gf	8.8 mm	0.345 in	6.118 gf	30000000 Cycles	On-Mom	SPST-NC	-25 °C	85 °C	Lever Straight	200000 Cycles	Solder Lug	125 V	IP40	0.031 "	0.8 mm	5 A	1.2 mm	0.047 "
Omron Electronics Inc-EMC Div SS-5GL13-F-3-T	Chassis Mount	16 gf			2.039 gf	30000000 Cycles	Off-Mom	SPST-NO	-25 °C	120 °C	Lever Simulated Roller	200000 Cycles	Solder Lug	125 V	IP40	0.031 "	0.8 mm	5 A	1.2 mm	0.047 "
