09120173001
ActiveHARTING Technology Group

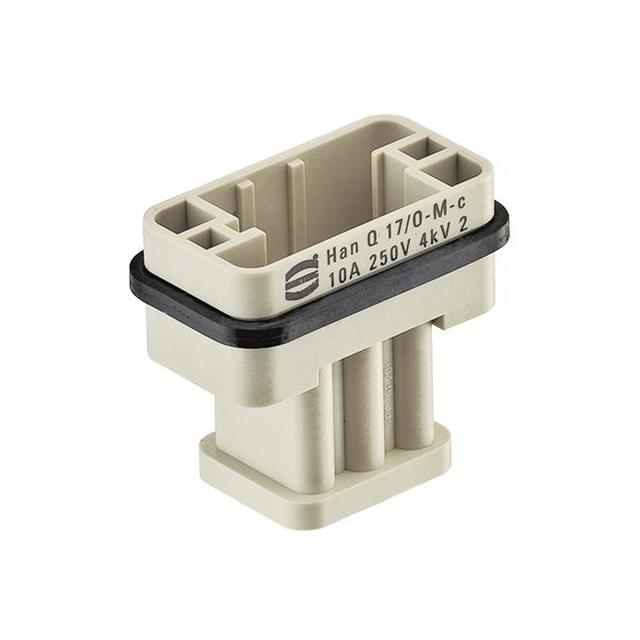

INSERT MALE 17POS CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09120173001
ActiveHARTING Technology Group
INSERT MALE 17POS CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09120173001 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han® |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
09120173 Series
| Part | Contact Type | Current Rating (Amps) | Gender | Housing Material | Material Flammability Rating | Termination Style | Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Han® | 10 A | Female | Polycarbonate (PC) | UL94 V-0 | Crimp | Gray | 125 °C | -40 °C | Insert without Contacts | 250 VDC |
HARTING Technology Group | Han® | 10 A | Male | Polycarbonate (PC) | UL94 V-0 | Crimp | Gray | 125 °C | -40 °C | Insert without Contacts | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.14 | |
| 10 | $ 17.96 | |||
| 25 | $ 19.11 | |||
| 30 | $ 16.62 | |||
| 50 | $ 16.04 | |||
| 100 | $ 15.27 | |||
| 250 | $ 14.32 | |||
| 500 | $ 13.63 | |||
Description
General part information
09120173 Series
Male Insert without Contacts Gray 17 Position Crimp
Documents
Technical documentation and resources
