09120173101

Active

HARTING Technology Group

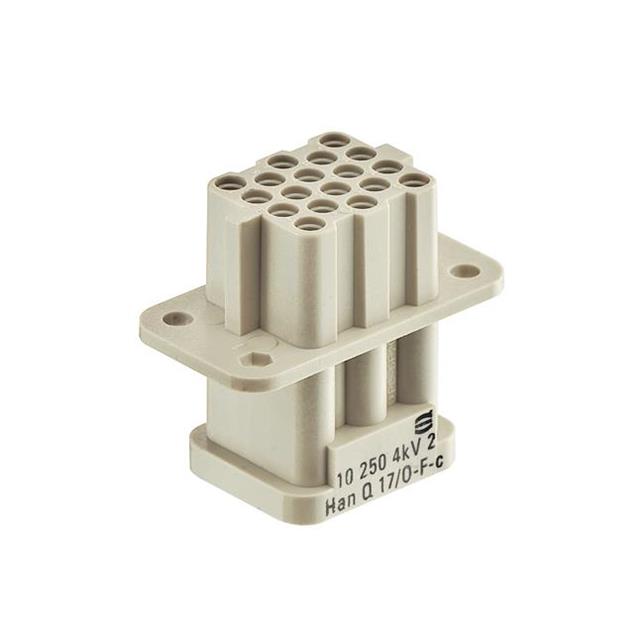

HEAVY DUTY CONNECTOR, HAN-COMPACT® 17/0+PE POWER-SIGNAL, LESS CONTACTS, HAN Q SERIES, INSERT

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-COMPACT® 17/0+PE POWER-SIGNAL, LESS CONTACTS, HAN Q SERIES, INSERT

Technical Specifications

Parameters and characteristics for this part

Specification	09120173101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Contact Type	Current Rating (Amps)	Gender	Housing Material	Material Flammability Rating	Termination Style	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Voltage Rating
HARTING Technology Group 09120173101	Han®	10 A	Female	Polycarbonate (PC)	UL94 V-0	Crimp	Gray	125 °C	-40 °C	Insert without Contacts	250 VDC
HARTING Technology Group 09120173001	Han®	10 A	Male	Polycarbonate (PC)	UL94 V-0	Crimp	Gray	125 °C	-40 °C	Insert without Contacts	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The Han Q series Han-Quick Lock® heavy duty Connector Male Insert with crimp termination.
