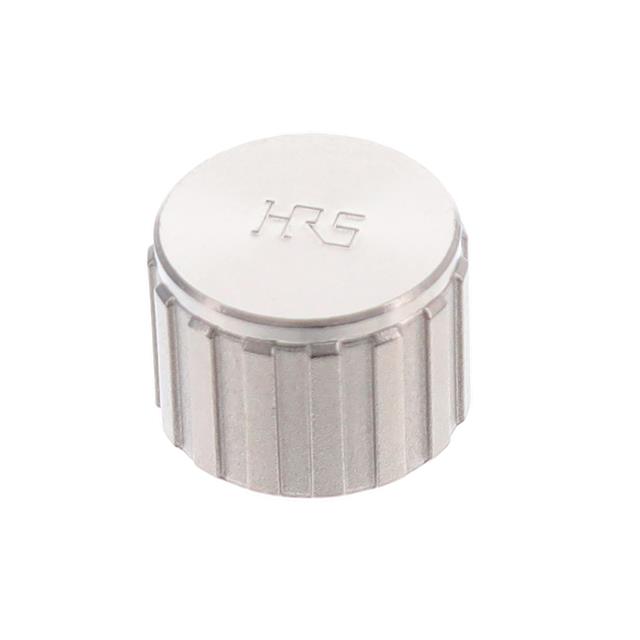

LF07WBR-C

Active

Hirose Electric USA, Inc.

CONN COVER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN COVER

Technical Specifications

Parameters and characteristics for this part

Specification	LF07WBR-C

Accessory Type	Cap (Cover)
Color	Silver
Features	Waterproof, Dust Tight
For Use With/Related Products	LF Series Receptacle
Material	Zinc Alloy
Shell Size - Insert	7

Part	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Fastening Type	Voltage Rating	Shell Material	Contact Finish - Mating	Insert Material	Applications	Connector Type	Shell Finish	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Orientation	Mounting Feature	Current Rating (Amps)	Ingress Protection	Features	Material	For Use With/Related Products	Accessory Type	Number of Positions
Hirose Electric USA, Inc. LF07WBR-3P	Silver	0.203 Ám	8 Áin	7	Bayonet Lock	125 VAC 175 VDC	Zinc Alloy	Gold	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Male Pins Receptacle	Nickel	Metal	-25 °C	85 °C	Copper Alloy	UL94 V-0	Keyed	Bulkhead - Rear Side Nut	5 A	IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. LF07WBR-C2	Black			7																		Dust Tight Waterproof	Rubber	LF Series Receptacle	Cap (Cover)
Hirose Electric USA, Inc. LF07WBR-C	Silver			7																		Dust Tight Waterproof	Zinc Alloy	LF Series Receptacle	Cap (Cover)
Hirose Electric USA, Inc. LF07WBR-6S	Silver	0.203 Ám	8 Áin	7	Bayonet Lock	30 VAC 42 VDC	Zinc Alloy	Gold	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Receptacle Female Sockets	Nickel	Metal	-25 °C	85 °C	Phosphor Bronze	UL94 V-0	Keyed	Bulkhead - Rear Side Nut	2 A	IP67/IP68 - Dust Tight Waterproof					6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover) 7 Silver
