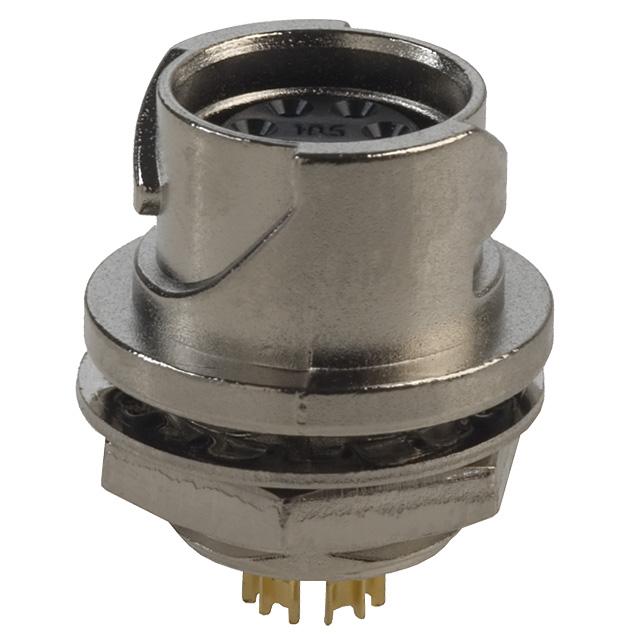

LF07WBR-6S

Active

Hirose Electric USA, Inc.

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	LF07WBR-6S

Applications	Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	7
Voltage Rating	30 VAC, 42 VDC

Part	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Fastening Type	Voltage Rating	Shell Material	Contact Finish - Mating	Insert Material	Applications	Connector Type	Shell Finish	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Orientation	Mounting Feature	Current Rating (Amps)	Ingress Protection	Features	Material	For Use With/Related Products	Accessory Type	Number of Positions
Hirose Electric USA, Inc. LF07WBR-3P	Silver	0.203 Ám	8 Áin	7	Bayonet Lock	125 VAC 175 VDC	Zinc Alloy	Gold	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Male Pins Receptacle	Nickel	Metal	-25 °C	85 °C	Copper Alloy	UL94 V-0	Keyed	Bulkhead - Rear Side Nut	5 A	IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. LF07WBR-C2	Black			7																		Dust Tight Waterproof	Rubber	LF Series Receptacle	Cap (Cover)
Hirose Electric USA, Inc. LF07WBR-C	Silver			7																		Dust Tight Waterproof	Zinc Alloy	LF Series Receptacle	Cap (Cover)
Hirose Electric USA, Inc. LF07WBR-6S	Silver	0.203 Ám	8 Áin	7	Bayonet Lock	30 VAC 42 VDC	Zinc Alloy	Gold	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Receptacle Female Sockets	Nickel	Metal	-25 °C	85 °C	Phosphor Bronze	UL94 V-0	Keyed	Bulkhead - Rear Side Nut	2 A	IP67/IP68 - Dust Tight Waterproof					6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
