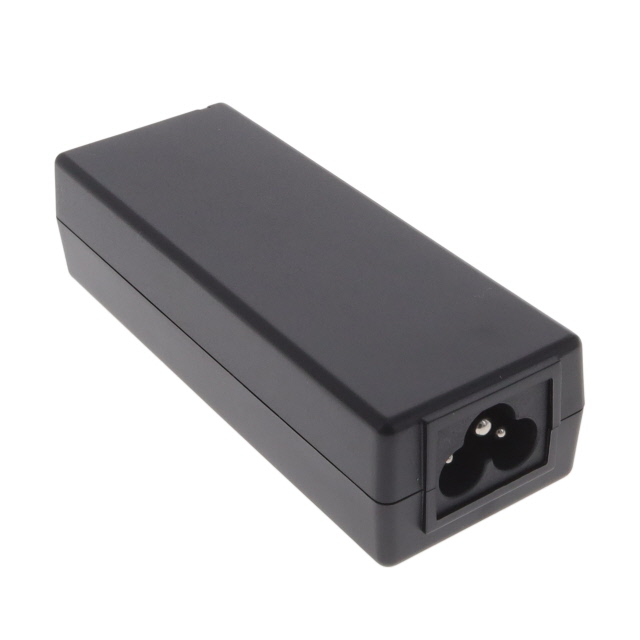

POE15M-560-R

Active

Phihong USA

PASSIVE POE ADAPTER - C6- GIGABI

Search across all available documentation for this part.

Active

Phihong USA

PASSIVE POE ADAPTER - C6- GIGABI

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Standard Number	Type	Power (Watts) - Per Port	Output Connector	Number of Ports	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Compliance	Voltage - Output	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Features	Approval Agency	Efficiency
Phihong USA POE15M-1AFE-2-R	275 mA	60950-1	Passive Injector	15.4 W	RJ45 (Data Power)	1	90 VAC	264 VAC	50 °C	-20 C	IEC 320-C6 (Power) RJ45 (Data)	IEEE802.3af	56 V	Desktop	4.18 "	1.56 in	39.5 mm	106.2 mm	1.07 "	27.3 mm	OCP OVP SCP	cULus IEC
Phihong USA POE15M-560E-R	275 mA	60950-1	Passive Injector	15.4 W	RJ45 (Data Power)	1	90 VAC	264 VAC	50 °C	-20 C	IEC 320-C6 (Power) RJ45 (Data)		56 V	Desktop	4.18 "	1.56 in	39.5 mm	106.2 mm	1.07 "	27.3 mm	OCP OVP SCP	cULus IEC	Level VI
Phihong USA POE15M-1AFE-R	275 mA	60950-1	Passive Injector	15.4 W	RJ45 (Data Power)	1	90 VAC	264 VAC	50 °C	-20 C	IEC 320-C6 (Power) RJ45 (Data)	IEEE802.3af	56 V	Desktop	4.18 "	1.56 in	39.5 mm	106.2 mm	1.07 "	27.3 mm	OCP OVP SCP	cULus IEC
Phihong USA POE15M-560-R	275 mA		Passive Injector	15.4 W	RJ45 (Data Power)	1	90 VAC	264 VAC	50 °C	-20 C	IEC 320-C6 (Power) RJ45 (Data)		56 V	Desktop	4.18 "	1.56 in	39.5 mm	106.2 mm	1.07 "	27.3 mm	OCP OVP SCP	CE cULus	Level VI
Phihong USA POE15M-1AF	275 mA		Midspan Injector	15.4 W	RJ45 (Data Power)	1	90 VAC	264 VAC	50 °C	-20 C	IEC 320-C6 (Power) RJ45 (Data)	IEEE802.3af	56 V	Desktop	4.18 "	1.56 in	39.5 mm	106.2 mm	1.07 "	27.3 mm	OCP OVP SCP	CE cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate

Technical documentation and resources
