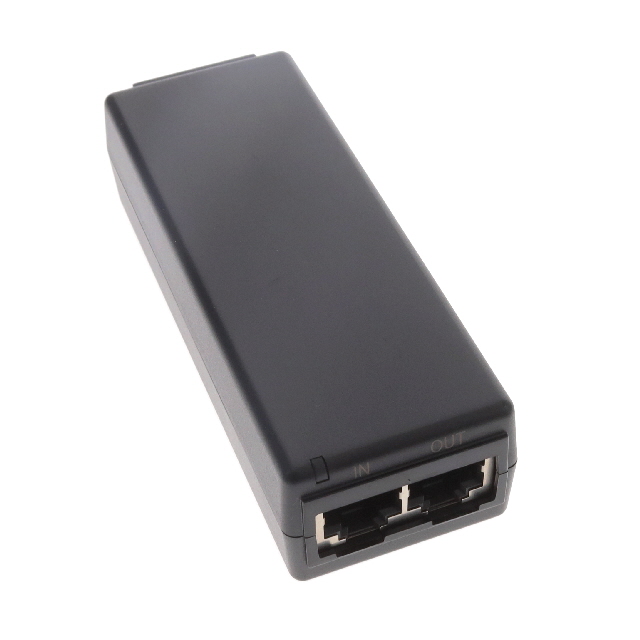

POE15M-560E-R
ActivePhihong USA
PASSIVE POE ADAPTER C14 GIGABIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
POE15M-560E-R
ActivePhihong USA
PASSIVE POE ADAPTER C14 GIGABIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | POE15M-560E-R |
|---|---|
| Approval Agency | IEC, cULus |
| Current - Output | 275 mA |
| Efficiency | Level VI |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C6 (Power), RJ45 (Data) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 15.4 W |
| Size / Dimension [x] | 4.18 " |
| Size / Dimension [x] | 106.2 mm |
| Size / Dimension [y] | 1.56 in |
| Size / Dimension [y] | 39.5 mm |
| Size / Dimension [z] | 1.07 " |
| Size / Dimension [z] | 27.3 mm |
| Standard Number | 60950-1 |
| Type | Passive Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 56 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.64 | |
| 10 | $ 15.60 | |||
| 25 | $ 14.68 | |||
| 50 | $ 14.26 | |||
| 100 | $ 13.50 | |||
| 250 | $ 13.13 | |||
| 500 | $ 12.51 | |||
Description
General part information
POE15M Series
56V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate
