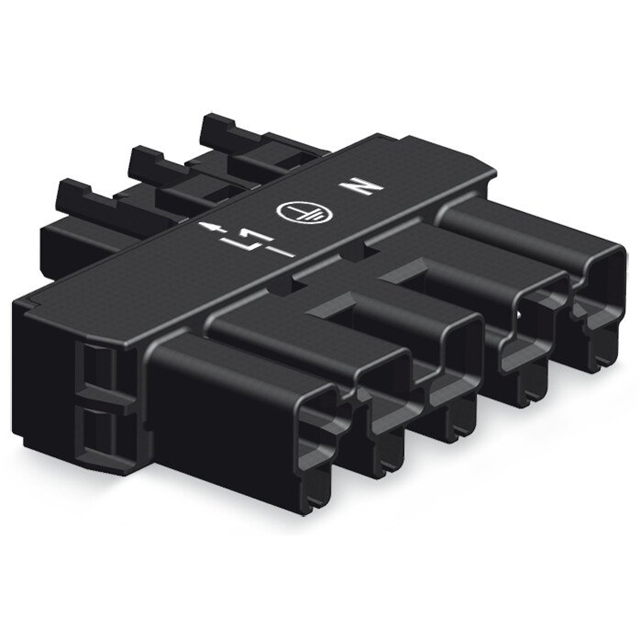

770-901

Active

WAGO Corporation

INTERMEDIATE COUPLER 5-POLE/3-POLE COD. A

Search across all available documentation for this part.

Active

WAGO Corporation

INTERMEDIATE COUPLER 5-POLE/3-POLE COD. A

Technical Specifications

Parameters and characteristics for this part

Specification	770-901

Convert From (Adapter End)	Terminal Block, Plug Connection
Convert From (Adapter End)	5 Pos, 1
Convert To (Adapter End)	3 Row, 1 Row
Convert To (Adapter End)	Plug Connection, Terminal Block
Mounting Type	Free Hanging (In-Line)

Part	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)
WAGO Corporation 770-907	Free Hanging (In-Line)	2 Row 6 Pos Plug Connection Terminal Block	2 Rows 6 pos	Plug Connection Terminal Block
WAGO Corporation 770-934	Free Hanging (In-Line)	Plug Connection Terminal Block	2 Rows 6 pos	Plug Connection Terminal Block	1 3 pos
WAGO Corporation 770-901	Free Hanging (In-Line)	Plug Connection Terminal Block	1 Row 3 Row	Plug Connection Terminal Block	1 5 Pos
WAGO Corporation 770-902	Free Hanging (In-Line)	Plug Connection Terminal Block	1 Row 3 Row	Plug Connection Terminal Block	1 5 Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 5 Pos, 1 Row To Terminal Block, Plug Connection, 3 Pos, 1 Row

Technical documentation and resources

No documents available
