770-934

Active

WAGO Corporation

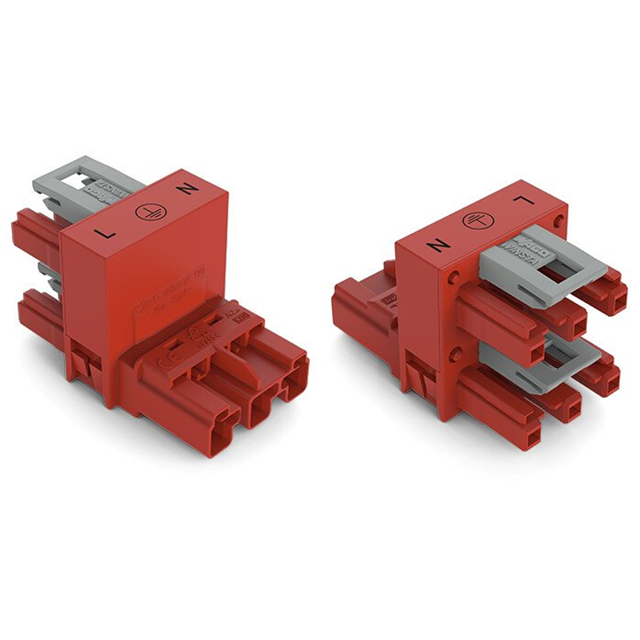

H-DISTRIBUTION CONNECTOR 3-POLE COD. P, RED

Search across all available documentation for this part.

Active

WAGO Corporation

H-DISTRIBUTION CONNECTOR 3-POLE COD. P, RED

Technical Specifications

Parameters and characteristics for this part

Specification	770-934

Convert From (Adapter End)	1, 3 pos
Convert From (Adapter End)	Terminal Block, Plug Connection
Convert To (Adapter End)	6 pos, 2 Rows
Convert To (Adapter End)	Terminal Block, Plug Connection
Mounting Type	Free Hanging (In-Line)

Part	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)
WAGO Corporation 770-907	Free Hanging (In-Line)	2 Row 6 Pos Plug Connection Terminal Block	2 Rows 6 pos	Plug Connection Terminal Block
WAGO Corporation 770-934	Free Hanging (In-Line)	Plug Connection Terminal Block	2 Rows 6 pos	Plug Connection Terminal Block	1 3 pos
WAGO Corporation 770-901	Free Hanging (In-Line)	Plug Connection Terminal Block	1 Row 3 Row	Plug Connection Terminal Block	1 5 Pos
WAGO Corporation 770-902	Free Hanging (In-Line)	Plug Connection Terminal Block	1 Row 3 Row	Plug Connection Terminal Block	1 5 Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 3 Pos, 1 Row To Terminal Block, Plug Connection, 6 Pos, 2 Row

Technical documentation and resources

No documents available
