PCA-2FA-26-HL-3

Active

Adam Tech

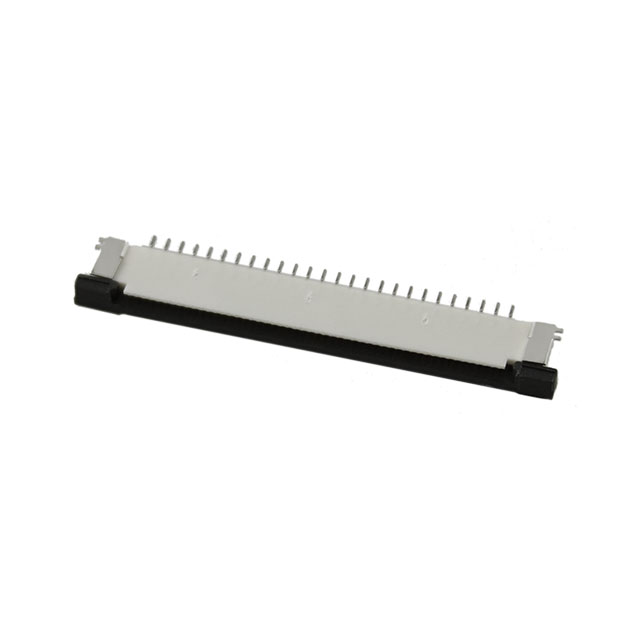

CONN FFC FPC BOTTOM 26POS 1MM RA

Search across all available documentation for this part.

Active

Adam Tech

CONN FFC FPC BOTTOM 26POS 1MM RA

Technical Specifications

Parameters and characteristics for this part

Specification	PCA-2FA-26-HL-3

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

Part	Features	Connector/Contact Type	Current Rating (Amps)	Locking Feature	Housing Color	Flat Flex Type	Number of Positions	Contact Material	Mounting Type	Pitch [x]	Pitch [x]	Housing Material	Cable End Type	Actuator Color	Actuator Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness	Contact Finish
Adam Tech PCA-2FA-08-HL-3	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	0.5 A	Slide Lock	Natural	FFC FPC	8	Phosphor Bronze	Surface Mount Right Angle	0.039 in	1 mm	Thermoplastic	Straight	Black	Thermoplastic	UL94 V-0	-25 °C	85 °C	0.091 in	2.3 mm	Solder	0.3 mm	Tin
Adam Tech PCA-2FA-24-HL-3	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	0.5 A	Slide Lock	Natural	FFC FPC	24	Phosphor Bronze	Surface Mount Right Angle	0.039 in	1 mm	Thermoplastic	Straight	Black	Thermoplastic	UL94 V-0	-25 °C	85 °C	0.091 in	2.3 mm	Solder	0.3 mm	Tin
Adam Tech PCA-2FA-26-HL-3	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	0.5 A	Slide Lock	Natural	FFC FPC	26	Phosphor Bronze	Surface Mount Right Angle	0.039 in	1 mm	Thermoplastic	Straight	Black	Thermoplastic	UL94 V-0	-25 °C	85 °C	0.091 in	2.3 mm	Solder	0.3 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
