PCA-2FA-08-HL-3

Active

Adam Tech

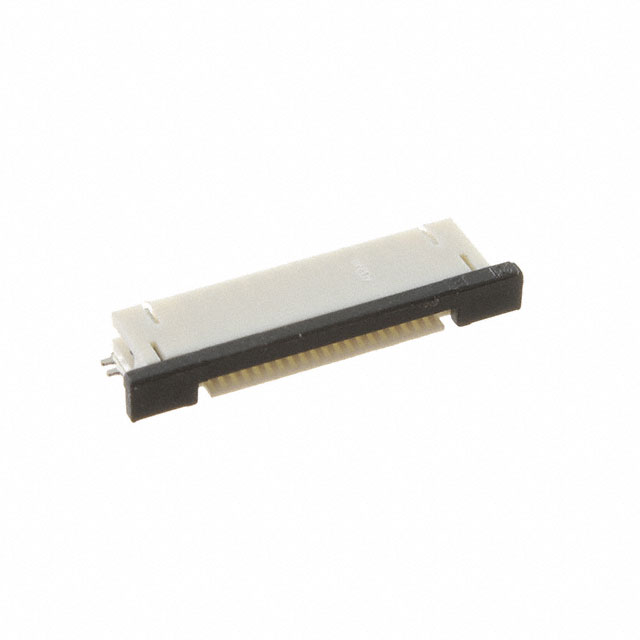

CONN FFC FPC BOTTOM 8POS 1MM R/A

Search across all available documentation for this part.

Active

Adam Tech

CONN FFC FPC BOTTOM 8POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PCA-2FA-08-HL-3

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

Part	Features	Connector/Contact Type	Current Rating (Amps)	Locking Feature	Housing Color	Flat Flex Type	Number of Positions	Contact Material	Mounting Type	Pitch [x]	Pitch [x]	Housing Material	Cable End Type	Actuator Color	Actuator Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness	Contact Finish
Adam Tech PCA-2FA-08-HL-3	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	0.5 A	Slide Lock	Natural	FFC FPC	8	Phosphor Bronze	Surface Mount Right Angle	0.039 in	1 mm	Thermoplastic	Straight	Black	Thermoplastic	UL94 V-0	-25 °C	85 °C	0.091 in	2.3 mm	Solder	0.3 mm	Tin
Adam Tech PCA-2FA-24-HL-3	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	0.5 A	Slide Lock	Natural	FFC FPC	24	Phosphor Bronze	Surface Mount Right Angle	0.039 in	1 mm	Thermoplastic	Straight	Black	Thermoplastic	UL94 V-0	-25 °C	85 °C	0.091 in	2.3 mm	Solder	0.3 mm	Tin
Adam Tech PCA-2FA-26-HL-3	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	0.5 A	Slide Lock	Natural	FFC FPC	26	Phosphor Bronze	Surface Mount Right Angle	0.039 in	1 mm	Thermoplastic	Straight	Black	Thermoplastic	UL94 V-0	-25 °C	85 °C	0.091 in	2.3 mm	Solder	0.3 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
