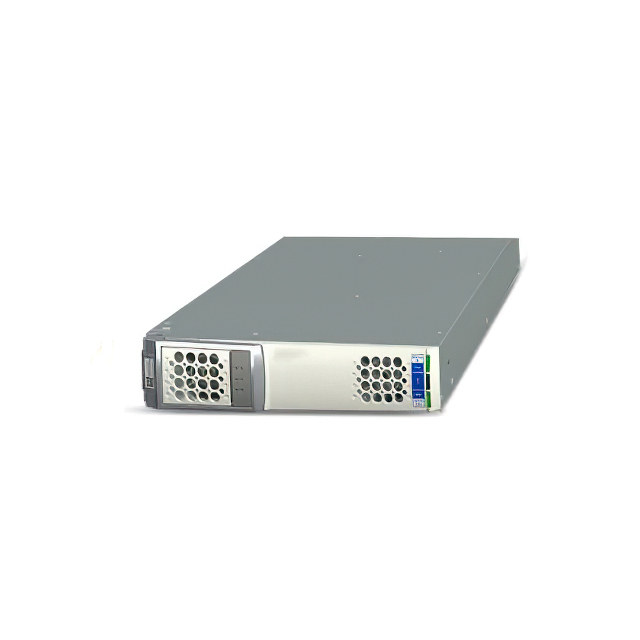

GP100H3R48TEZ-IN

Active

OmniOn Power™

AC/DC CONVERTER 48V 6000W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 48V 6000W

Technical Specifications

Parameters and characteristics for this part

Specification	GP100H3R48TEZ-IN

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	125 A
Efficiency	96 %
Features	Adjustable Output, Load Sharing, Remote On/Off, PFC, PMBus™, I2C Interface, Hot Swappable, Standby Output
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Power (Watts)	6000 W
Size / Dimension [x]	440.9 mm
Size / Dimension [x]	17.36 "
Size / Dimension [y]	7.97 in
Size / Dimension [y]	202.4 mm
Size / Dimension [z]	40.9 mm
Size / Dimension [z]	1.61 "
Type	Front End
Voltage - Input [Max]	530 VAC
Voltage - Input [Min]	320 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Power (Watts)	Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Current - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Approval Agency
OmniOn Power™ GP100H3R48TEZ	6000 W	Front End	52 V	530 VAC	320 VAC	92 %	3000 V	7.98 "	202.5 mm	445.3 mm	17.53 "	1.61 "	40.9 mm	1	111.1 A	80 Plus® Titanium Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	-10 °C	75 ░C	ITE (Commercial)	Rack Mount
OmniOn Power™ GP100H3M54TEZ	6000 W	Front End	54 V	530 VAC	320 VAC	96 %	3000 V	7.97 in	202.4 mm	445.3 mm	17.53 "	1.61 "	40.9 mm	1	111 A	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Standby Output	-10 °C	75 ░C	ITE (Commercial)	Rack Mount	CE
OmniOn Power™ GP100H3R48TEZ-IN	6000 W	Front End	48 V	530 VAC	320 VAC	96 %	3000 V	7.97 in	202.4 mm	440.9 mm	17.36 "	1.61 "	40.9 mm	1	125 A	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Standby Output	-10 °C	75 ░C	ITE (Commercial)	Rack Mount	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2402.72

General part information

Front End AC DC Converters 1 Output 48V 320 ~ 530 VAC (3 Phase) Input
