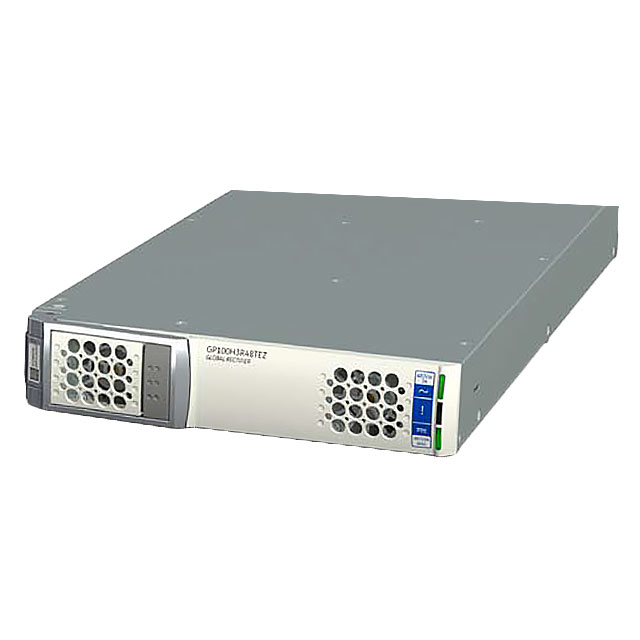

GP100H3R48TEZ

Active

OmniOn Power™

AC/DC CONVERTER 52V 6000W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 52V 6000W

Technical Specifications

Parameters and characteristics for this part

Specification	GP100H3R48TEZ

Applications	ITE (Commercial)
Current - Output 1	111.1 A
Efficiency	92 %
Features	Standby Output, 80 Plus® Titanium, Adjustable Output, Load Sharing, I2C Interface, PMBus™, Remote Sense, PFC, Universal Input
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Power (Watts)	6000 W
Size / Dimension [x]	445.3 mm
Size / Dimension [x]	17.53 "
Size / Dimension [y]	7.98 "
Size / Dimension [y]	202.5 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.9 mm
Type	Front End
Voltage - Input [Max]	530 VAC
Voltage - Input [Min]	320 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	52 V

Part	Power (Watts)	Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Current - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Approval Agency
OmniOn Power™ GP100H3R48TEZ	6000 W	Front End	52 V	530 VAC	320 VAC	92 %	3000 V	7.98 "	202.5 mm	445.3 mm	17.53 "	1.61 "	40.9 mm	1	111.1 A	80 Plus® Titanium Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	-10 °C	75 ░C	ITE (Commercial)	Rack Mount
OmniOn Power™ GP100H3M54TEZ	6000 W	Front End	54 V	530 VAC	320 VAC	96 %	3000 V	7.97 in	202.4 mm	445.3 mm	17.53 "	1.61 "	40.9 mm	1	111 A	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Standby Output	-10 °C	75 ░C	ITE (Commercial)	Rack Mount	CE
OmniOn Power™ GP100H3R48TEZ-IN	6000 W	Front End	48 V	530 VAC	320 VAC	96 %	3000 V	7.97 in	202.4 mm	440.9 mm	17.36 "	1.61 "	40.9 mm	1	125 A	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Standby Output	-10 °C	75 ░C	ITE (Commercial)	Rack Mount	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 52V 320 ~ 530 VAC (3 Phase) Input
