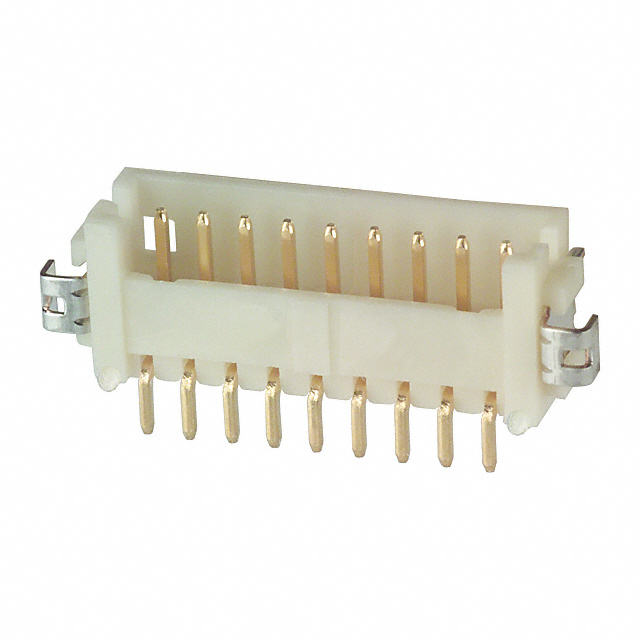

DF13-9P-1.25H(51)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 1.25MM PITCH MINIATURE CRIMPING CONNECTORS (UL CERTIFIED)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13-9P-1.25H(51)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	3.6 mm
Insulation Height	0.142 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13 Series

...

Part	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Fastening Type	Termination	Number of Rows	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Shrouding	Voltage Rating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Number of Positions Loaded	Contact Material	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish - Mating	Current Rating (Amps)	Features	Mated Stacking Heights
Hirose Electric USA, Inc. DF13-15P-1.25DSA	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	1 µm	39.4 µin	15	Tin	Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass
Hirose Electric USA, Inc. DF13-2630SCFA(44)																												Socket	26 AWG	30 AWG	Crimp
Hirose Electric USA, Inc. DF13-3P-1.25DSA(50)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin			Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass					Gold
Hirose Electric USA, Inc. DF13-14P-1.25DSA(25)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire			14	Tin	Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass						1 A
Hirose Electric USA, Inc. DF13-9P-1.25H(21)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount Right Angle	-35 °C	85 °C	3.6 mm	0.142 in	Detent Lock	Solder	1	Board to Cable/Wire			9	Tin	Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass							Board Guide Solder Retention
Hirose Electric USA, Inc. DF13-8P-1.25H(21)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount Right Angle	-35 °C	85 °C	3.6 mm	0.142 in	Detent Lock	Solder	1	Board to Cable/Wire			8	Tin	Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass							Board Guide Solder Retention
Hirose Electric USA, Inc. DF13-9P-1.25H(51)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount Right Angle	-35 °C	85 °C	3.6 mm	0.142 in	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin	9		Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass					Gold		Board Guide Solder Retention
Hirose Electric USA, Inc. DF13-13P-1.25DSA(20)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	1 µm	39.4 µin	13	Tin	Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass
Hirose Electric USA, Inc. DF13-2P-1.25DSA(50)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin	2		Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass					Gold
Hirose Electric USA, Inc. DF13-14P-1.25V(50)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount	-35 °C	85 °C	4.8 mm	0.189 in	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin	14		Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass					Gold		Board Guide Solder Retention	5.8 mm
