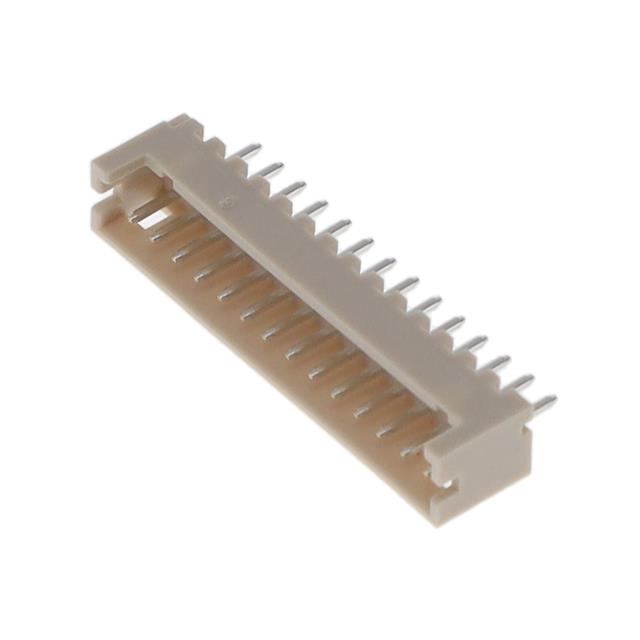

DF13-14P-1.25DSA(25)

Active

Hirose Electric USA, Inc.

CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF13-14P-1.25DSA(25)

Active

Hirose Electric USA, Inc.

CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13-14P-1.25DSA(25)

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Detent Lock
Insulation Color	Beige
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13 Series

...

Part	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Fastening Type	Termination	Number of Rows	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Shrouding	Voltage Rating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Number of Positions Loaded	Contact Material	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish - Mating	Current Rating (Amps)	Features	Mated Stacking Heights
Hirose Electric USA, Inc. DF13-15P-1.25DSA	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	1 µm	39.4 µin	15	Tin	Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass
Hirose Electric USA, Inc. DF13-2630SCFA(44)																												Socket	26 AWG	30 AWG	Crimp
Hirose Electric USA, Inc. DF13-3P-1.25DSA(50)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin			Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass					Gold
Hirose Electric USA, Inc. DF13-14P-1.25DSA(25)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire			14	Tin	Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass						1 A
Hirose Electric USA, Inc. DF13-9P-1.25H(21)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount Right Angle	-35 °C	85 °C	3.6 mm	0.142 in	Detent Lock	Solder	1	Board to Cable/Wire			9	Tin	Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass							Board Guide Solder Retention
Hirose Electric USA, Inc. DF13-8P-1.25H(21)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount Right Angle	-35 °C	85 °C	3.6 mm	0.142 in	Detent Lock	Solder	1	Board to Cable/Wire			8	Tin	Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass							Board Guide Solder Retention
Hirose Electric USA, Inc. DF13-9P-1.25H(51)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount Right Angle	-35 °C	85 °C	3.6 mm	0.142 in	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin	9		Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass					Gold		Board Guide Solder Retention
Hirose Electric USA, Inc. DF13-13P-1.25DSA(20)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	1 µm	39.4 µin	13	Tin	Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass
Hirose Electric USA, Inc. DF13-2P-1.25DSA(50)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Through Hole	-35 °C	85 °C	4.3 mm	0.169 "	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin	2		Shrouded - 4 Wall	150 VDC	0.091 in	2.3 mm	UL94 V-0	Male Pin	All	Brass					Gold
Hirose Electric USA, Inc. DF13-14P-1.25V(50)	Beige	Square	1.25 mm	0.049 in	Header	Nylon Polyamide (PA)	Surface Mount	-35 °C	85 °C	4.8 mm	0.189 in	Detent Lock	Solder	1	Board to Cable/Wire	0.203 Ám	8 Áin	14		Shrouded - 4 Wall	150 VDC			UL94 V-0	Male Pin	All	Brass					Gold		Board Guide Solder Retention	5.8 mm
