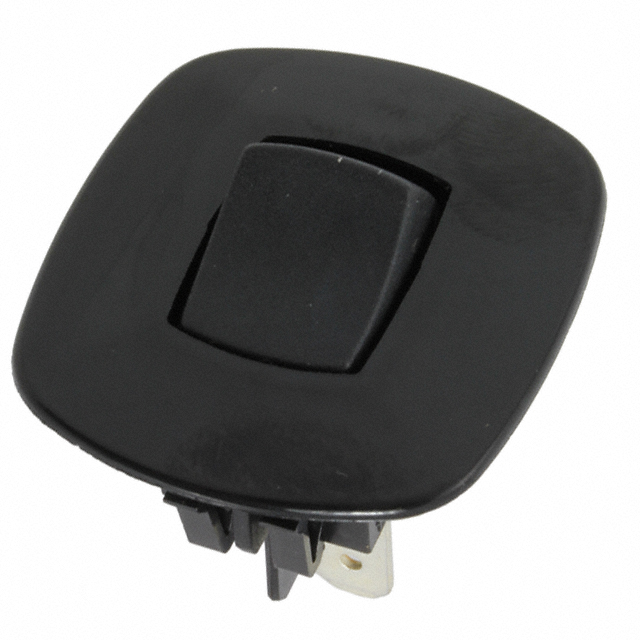

GRSV-4011-0011
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GRSV-4011-0011
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRSV-4011-0011 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Features | Terminal Barriers, Polarized |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
GRSV-4011 Series
| Part | Termination Style | Color - Actuator/Cap | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Voltage Rating - AC | Actuator Marking | Actuator Type | Current Rating (Amps) | Mounting Type | Circuit | Voltage Rating - DC | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | Quick Connect - 0.187" (4.7mm) | Red | On-Off | 12.9 mm | Rectangular | 19.2 mm | 125 V | ON OFF Vertical | Concave (Curved) | 8 A | Panel Mount Snap-In | SPST | ||||||
CW Industries | Quick Connect - 0.187" (4.7mm) | White | On-Off | 12.9 mm | Rectangular | 19.2 mm | 125 V | Light Bulb | Concave (Curved) | 8 A | Panel Mount Snap-In | SPST | ||||||
CW Industries | Quick Connect - 0.187" (4.7mm) | Black | Off-Mom | 12.9 mm | Rectangular | 19.2 mm | 125 V | No Marking | Concave (Curved) | 5 A 13 A | Panel Mount Snap-In | SPST-NO | 14 V | 10000 Cycles | -20 C | 105 ░C | 30000 Steps | |
CW Industries | Quick Connect - 0.187" (4.7mm) | Black | Off-Mom | 12.9 mm | Rectangular | 19.2 mm | 125 V | No Marking | Concave (Curved) | 5 A 13 A | Panel Mount Snap-In | SPST-NO | 14 V | 10000 Cycles | -20 C | 105 ░C | 30000 Steps | |
CW Industries | Quick Connect - 0.187" (4.7mm) | Black | On-Off | 12.9 mm | 28.58 mm | 125 V | No Marking | Concave (Curved) | 16 A | Panel Mount Snap-In | SPST | Polarized Terminal Barriers | ||||||
CW Industries | Quick Connect - 0.187" (4.7mm) | Bisque | On-Off | 12.9 mm | Rectangular | 19.2 mm | 125 V | No Marking | Concave (Curved) | 5 A 13 A | Panel Mount Snap-In | SPST | 14 V | 25000 Steps | -20 C | 105 ░C | 100000 Cycles | |
CW Industries | Quick Connect - 0.187" (4.7mm) | Black | On-Off | 12.9 mm | Rectangular | 19.2 mm | 125 V | Light Bulb | Concave (Curved) | 8 A | Panel Mount Snap-In | SPST | ||||||
CW Industries | Quick Connect - 0.187" (4.7mm) | Bisque Brown-Gray | On-Off | 12.9 mm | Rectangular | 19.2 mm | 125 V | No Marking | Concave (Curved) | 8 A | Panel Mount Snap-In | SPST |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GRSV-4011 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
