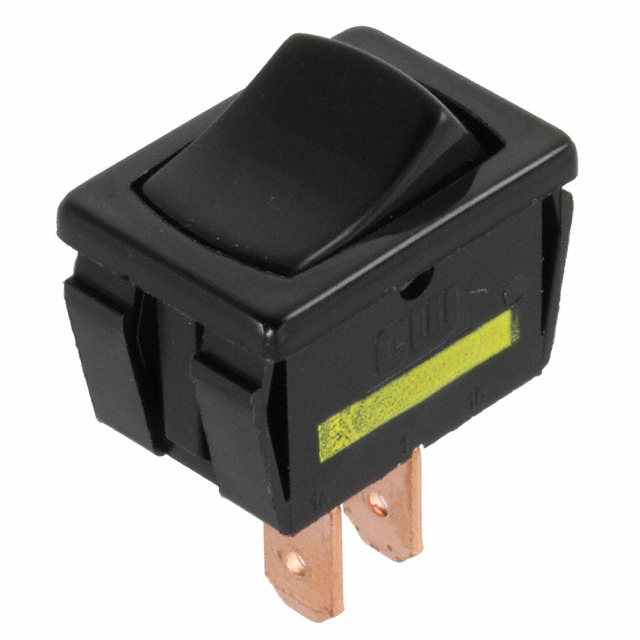

GRSV-4011B-0030

Active

CW Industries

SWITCH ROCKER SPST-NO 13A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GRSV-4011B-0030

Active

CW Industries

SWITCH ROCKER SPST-NO 13A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRSV-4011B-0030

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	13 A, 5 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

GRSV-4011 Series

Part	Termination Style	Color - Actuator/Cap	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Voltage Rating - AC	Actuator Marking	Actuator Type	Current Rating (Amps)	Mounting Type	Circuit	Voltage Rating - DC	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Features
CW Industries GRSV-4011-0137	Quick Connect - 0.187" (4.7mm)	Red	On-Off	12.9 mm	Rectangular	19.2 mm	125 V	ON OFF Vertical	Concave (Curved)	8 A	Panel Mount Snap-In	SPST
CW Industries GRSV-4011-0135	Quick Connect - 0.187" (4.7mm)	White	On-Off	12.9 mm	Rectangular	19.2 mm	125 V	Light Bulb	Concave (Curved)	8 A	Panel Mount Snap-In	SPST
CW Industries GRSV-4011B-0027	Quick Connect - 0.187" (4.7mm)	Black	Off-Mom	12.9 mm	Rectangular	19.2 mm	125 V	No Marking	Concave (Curved)	5 A 13 A	Panel Mount Snap-In	SPST-NO	14 V	10000 Cycles	-20 C	105 ░C	30000 Steps
CW Industries GRSV-4011B-0030	Quick Connect - 0.187" (4.7mm)	Black	Off-Mom	12.9 mm	Rectangular	19.2 mm	125 V	No Marking	Concave (Curved)	5 A 13 A	Panel Mount Snap-In	SPST-NO	14 V	10000 Cycles	-20 C	105 ░C	30000 Steps
CW Industries GRSV-4011-0011	Quick Connect - 0.187" (4.7mm)	Black	On-Off	12.9 mm		28.58 mm	125 V	No Marking	Concave (Curved)	16 A	Panel Mount Snap-In	SPST						Polarized Terminal Barriers
CW Industries GRSV-4011-0127	Quick Connect - 0.187" (4.7mm)	Bisque	On-Off	12.9 mm	Rectangular	19.2 mm	125 V	No Marking	Concave (Curved)	5 A 13 A	Panel Mount Snap-In	SPST	14 V	25000 Steps	-20 C	105 ░C	100000 Cycles
CW Industries GRSV-4011-0134	Quick Connect - 0.187" (4.7mm)	Black	On-Off	12.9 mm	Rectangular	19.2 mm	125 V	Light Bulb	Concave (Curved)	8 A	Panel Mount Snap-In	SPST
CW Industries GRSV-4011-0133	Quick Connect - 0.187" (4.7mm)	Bisque Brown-Gray	On-Off	12.9 mm	Rectangular	19.2 mm	125 V	No Marking	Concave (Curved)	8 A	Panel Mount Snap-In	SPST

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.01

Description

General part information

GRSV-4011 Series

Rocker Switch SPST-NO 13A (AC), 5A (DC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources
