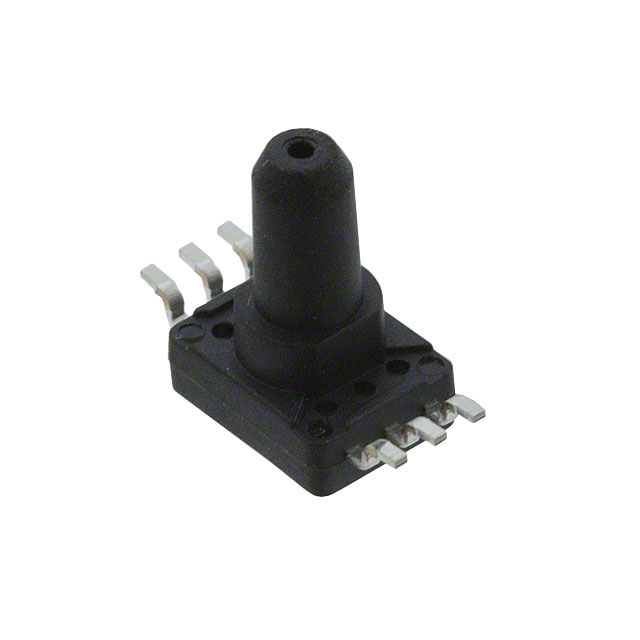

2SMPP03
ActiveOmron Electronics Inc-EMC Div
SENSOR 7.25PSIC 0.1" .042V
Deep-Dive with AI
Search across all available documentation for this part.
2SMPP03
ActiveOmron Electronics Inc-EMC Div
SENSOR 7.25PSIC 0.1" .042V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SMPP03 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 17.4 PSI |
| Maximum Pressure [Max] | 120 kPa |
| Maximum Pressure [Min] | -80 kPa |
| Maximum Pressure [Min] | -11.6 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 50 kPa |
| Operating Pressure | 7.25 PSI |
| Output [Max] | 42 mV |
| Output [Min] | -43 mV |
| Output Type | Analog Voltage |
| Package / Case | 6-SMD Module |
| Port Size | 0.1 " |
| Port Size | 2.59 mm |
| Port Style | Barbless |
| Pressure Type | Compound |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.33 | |
| 10 | $ 6.67 | |||
| 25 | $ 6.17 | |||
| 112 | $ 5.33 | |||
| 560 | $ 5.00 | |||
| 1008 | $ 4.67 | |||
Description
General part information
2SMPP Series
Pressure Sensor ±7.25PSI (±50kPa) Compound Male - 0.1" (2.59mm) Tube -43 mV ~ 42 mV 6-SMD Module
