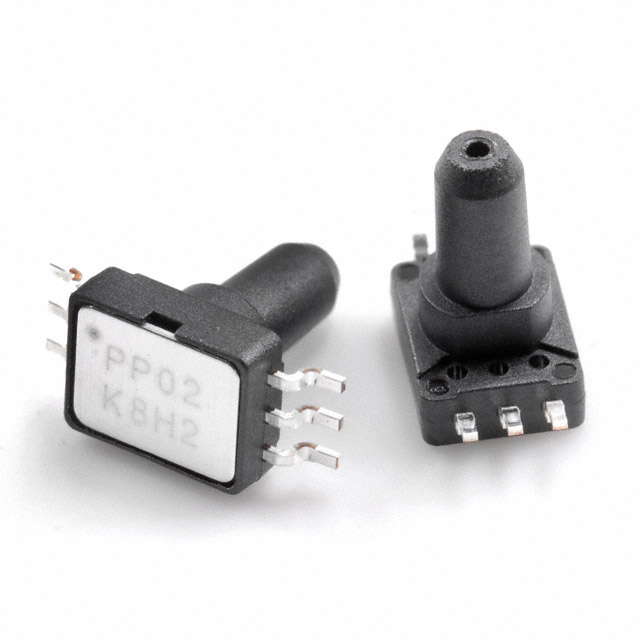

2SMPP-02
ActiveOmron Electronics Inc-EMC Div
SENSOR 5.37PSIG 0.1" .031V
Deep-Dive with AI
Search across all available documentation for this part.
2SMPP-02
ActiveOmron Electronics Inc-EMC Div
SENSOR 5.37PSIG 0.1" .031V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SMPP-02 |
|---|---|
| Accuracy | 0.8 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 7.69 PSI |
| Maximum Pressure [Max] | 53 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 37 kPa |
| Operating Pressure | 5.37 PSI |
| Output [Max] | 31 mV |
| Output [Min] | 0 mV |
| Output Type | Analog Voltage |
| Package / Case | 6-SMD Module |
| Port Size | 0.1 " |
| Port Size | 2.59 mm |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.04 | |
| 5 | $ 5.09 | |||
| 10 | $ 4.73 | |||
| 25 | $ 4.29 | |||
| 50 | $ 3.99 | |||
| 100 | $ 3.71 | |||
| 500 | $ 3.13 | |||
| 1000 | $ 2.91 | |||
Description
General part information
2SMPP Series
Pressure Sensor 5.37PSI (37kPa) Vented Gauge Male - 0.1" (2.59mm) Tube 0 mV ~ 31 mV 6-SMD Module
