MMC5983MA
ActiveMemsic Inc.
3-AXIS MAGNETIC SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMC5983MA
ActiveMemsic Inc.
3-AXIS MAGNETIC SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMC5983MA |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth | 1 kHz |
| Current - Supply (Max) [Max] | 450 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, SPI |
| Package / Case | 16-VFLGA |
| Qualification | AEC-Q100 |
| Resolution | 18 b |
| Sensing Range [Max] | 800 mT |
| Sensing Range [Min] | -800 mT |
| Supplier Device Package | 16-LGA (3x3) |
| Technology | Magnetoresistive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.60 | |
| 10 | $ 2.70 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.22 | |||
| 500 | $ 1.86 | |||
| 1000 | $ 1.74 | |||
| Digi-Reel® | 1 | $ 3.60 | ||
| 10 | $ 2.70 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.22 | |||
| 500 | $ 1.86 | |||
| 1000 | $ 1.74 | |||
| Tape & Reel (TR) | 5000 | $ 1.62 | ||
Description
General part information
MMC5983 Series

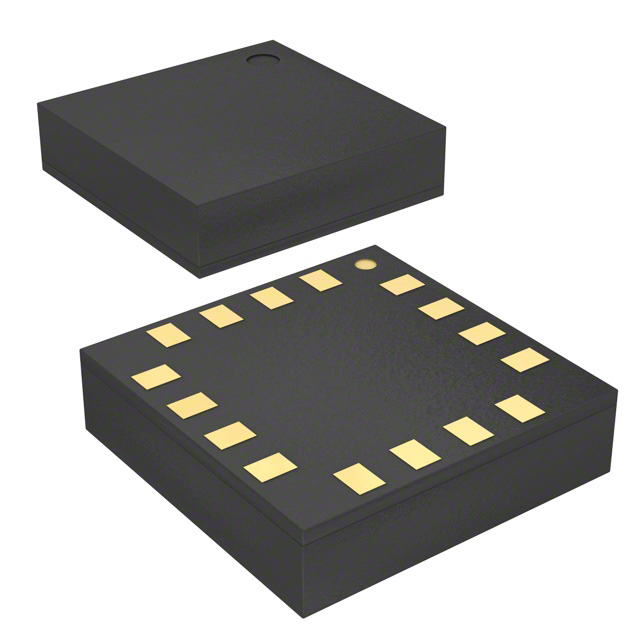

Magnetoresistive Sensor X, Y, Z Axis 16-LGA (3x3)
Documents
Technical documentation and resources
