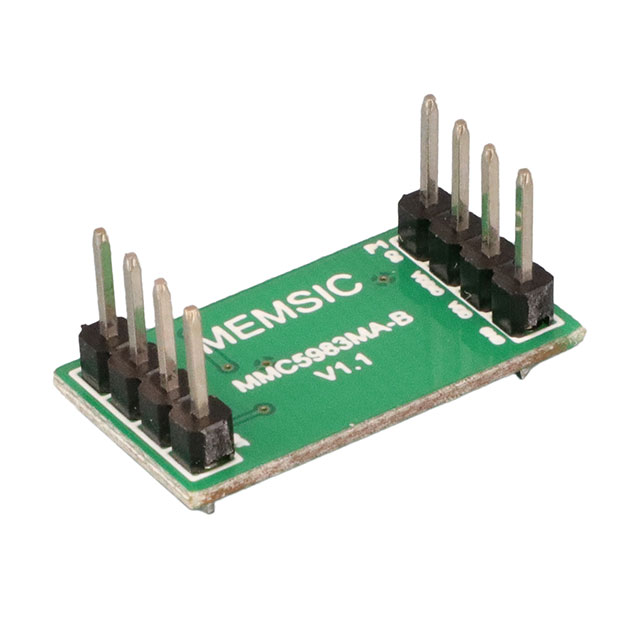

MMC5983MA-B

Active

Memsic Inc.

DEV BOARD FOR MMC5983MA

Search across all available documentation for this part.

Active

Memsic Inc.

DEV BOARD FOR MMC5983MA

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Utilized IC / Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Interface	Sensing Range [Min]	Sensing Range [Max]	Technology	Grade	Mounting Type	Bandwidth	Supplier Device Package	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Qualification	Output Type	Axis [z]	Axis [y]	Axis [x]	Resolution
Memsic Inc. MMC5983MA-B	Board(s)	MMC5983	2.8 V	3.6 V	Magnetic Magnetometer	I2C Serial SPI	-8 Gauss	8 Gauss
Memsic Inc. MMC5983MA							-800 mT	800 mT	Magnetoresistive	Automotive	Surface Mount	1 kHz	16-LGA (3x3)	450 µA	-40 °C	105 ░C	16-VFLGA	AEC-Q100	I2C SPI	Z	Y	X	18 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.10

General part information

MMC5983 - Magnetic, Magnetometer Sensor Evaluation Board
