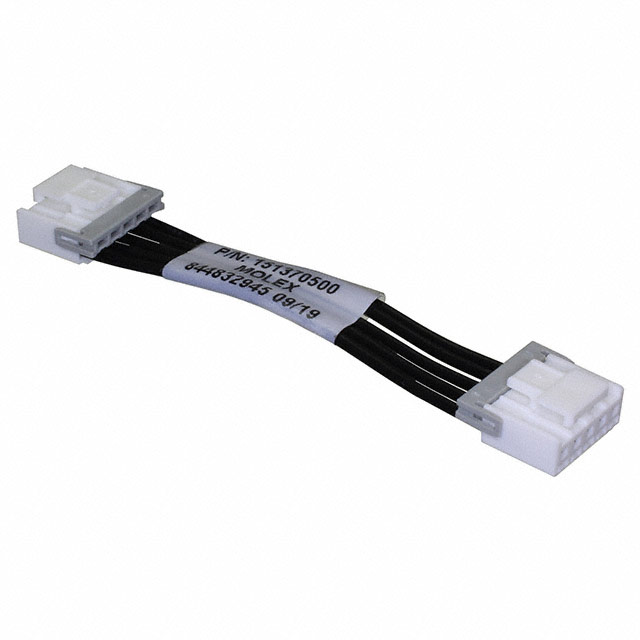

0151370505

Active

Molex

MINI-LOCK-TO-MINI-LOCK OFF-THE-S

Search across all available documentation for this part.

Active

Molex

MINI-LOCK-TO-MINI-LOCK OFF-THE-S

Technical Specifications

Parameters and characteristics for this part

Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Female-Female, Single Row, 450.00mm Length, 7 Circuits, Natural

Part	Cable Termination	Features	Connector Type	Length	Length	Length	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length [x]	Length [x]	Length [x]
Molex 0151370201	Crimp	Friction Lock Polarizing Key	Socket to Socket	100 mm	0.328 '	3.94 "	2.5 mm	0.098 in	Tin	2	1	35.4 µin	0.9 µm	Unshielded
Molex 0151370401	Crimp	Friction Lock Polarizing Key	Socket to Socket	100 mm	0.328 '	3.94 "	2.5 mm	0.098 in	Tin	4	1	35.4 µin	0.9 µm	Unshielded
Molex 0151370505	Crimp		Socket to Socket				2.5 mm	0.098 in	Tin		1	35 µin	0.89 µm	Unshielded	17.76 in	450 mm
Molex 151370702	Crimp	Friction Lock Polarizing Key	Socket to Socket	150 mm	0.492 ft	5.91 "	2.5 mm	0.098 in	Tin	7	1	35.4 µin	0.9 µm	Unshielded
Molex 151370305	Crimp	Friction Lock Polarizing Key	Socket to Socket				2.5 mm	0.098 in	Tin		1	35.4 µin	0.9 µm	Unshielded	17.76 in	450 mm
Molex 151371303	Crimp	Friction Lock Polarizing Key	Socket to Socket				2.5 mm	0.098 in	Tin	13	1	35.4 µin	0.9 µm	Unshielded	0.984 '	300 mm	11.81 "
Molex 0151370405	Crimp	Friction Lock Polarizing Key	Socket to Socket				2.5 mm	0.098 in	Tin	4	1	35.4 µin	0.9 µm	Unshielded	17.76 in	450 mm
Molex 0151370602	Crimp	Friction Lock Polarizing Key	Socket to Socket	150 mm	0.492 ft	5.91 "	2.5 mm	0.098 in	Tin	6	1	35.4 µin	0.9 µm	Unshielded
Molex 0151370306	Crimp	Friction Lock Polarizing Key	Socket to Socket	600 mm	1.97 ft		2.5 mm	0.098 in	Tin		1	35.4 µin	0.9 µm	Unshielded
Molex 0151370302	Crimp	Friction Lock Polarizing Key	Socket to Socket	150 mm	0.492 ft	5.91 "	2.5 mm	0.098 in	Tin		1	35.4 µin	0.9 µm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 3.86
Newark	Each	250	$ 4.48

General part information

Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Female-Female, Single Row, 450.00mm Length, 7 Circuits, Natural
