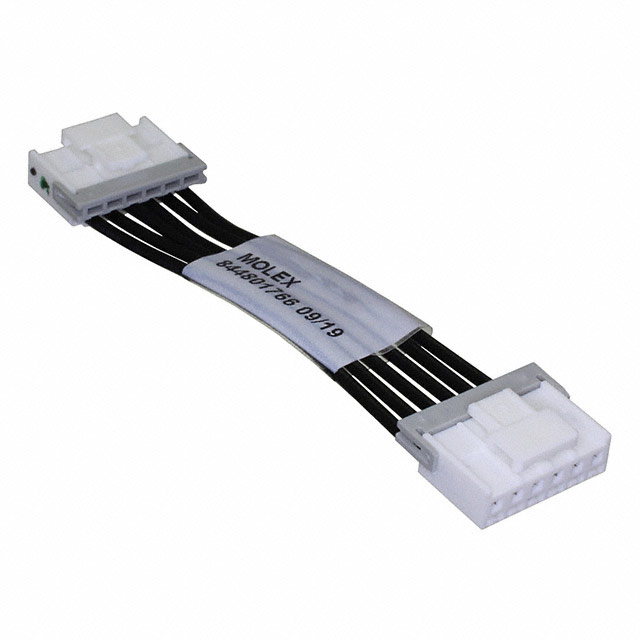

0151370602

Active

Molex

MINI-LOCK-TO-MINI-LOCK OFF-THE-S

Search across all available documentation for this part.

Active

Molex

MINI-LOCK-TO-MINI-LOCK OFF-THE-S

Technical Specifications

Parameters and characteristics for this part

Specification	0151370602

Cable Termination	Crimp
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	35.4 µin
Contact Finish Thickness	0.9 µm
Features	Friction Lock, Polarizing Key
Length	150 mm
Length	5.91 "
Length	0.492 ft
Number of Positions	6
Number of Rows	1
Pitch - Connector	2.5 mm
Pitch - Connector	0.098 in
Shielding	Unshielded

Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Female-Female, Single Row, 450.00mm Length, 7 Circuits, Natural

Part	Cable Termination	Features	Connector Type	Length	Length	Length	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length [x]	Length [x]	Length [x]
Molex 0151370201	Crimp	Friction Lock Polarizing Key	Socket to Socket	100 mm	0.328 '	3.94 "	2.5 mm	0.098 in	Tin	2	1	35.4 µin	0.9 µm	Unshielded
Molex 0151370401	Crimp	Friction Lock Polarizing Key	Socket to Socket	100 mm	0.328 '	3.94 "	2.5 mm	0.098 in	Tin	4	1	35.4 µin	0.9 µm	Unshielded
Molex 0151370505	Crimp		Socket to Socket				2.5 mm	0.098 in	Tin		1	35 µin	0.89 µm	Unshielded	17.76 in	450 mm
Molex 151370702	Crimp	Friction Lock Polarizing Key	Socket to Socket	150 mm	0.492 ft	5.91 "	2.5 mm	0.098 in	Tin	7	1	35.4 µin	0.9 µm	Unshielded
Molex 151370305	Crimp	Friction Lock Polarizing Key	Socket to Socket				2.5 mm	0.098 in	Tin		1	35.4 µin	0.9 µm	Unshielded	17.76 in	450 mm
Molex 151371303	Crimp	Friction Lock Polarizing Key	Socket to Socket				2.5 mm	0.098 in	Tin	13	1	35.4 µin	0.9 µm	Unshielded	0.984 '	300 mm	11.81 "
Molex 0151370405	Crimp	Friction Lock Polarizing Key	Socket to Socket				2.5 mm	0.098 in	Tin	4	1	35.4 µin	0.9 µm	Unshielded	17.76 in	450 mm
Molex 0151370602	Crimp	Friction Lock Polarizing Key	Socket to Socket	150 mm	0.492 ft	5.91 "	2.5 mm	0.098 in	Tin	6	1	35.4 µin	0.9 µm	Unshielded
Molex 0151370306	Crimp	Friction Lock Polarizing Key	Socket to Socket	600 mm	1.97 ft		2.5 mm	0.098 in	Tin		1	35.4 µin	0.9 µm	Unshielded
Molex 0151370302	Crimp	Friction Lock Polarizing Key	Socket to Socket	150 mm	0.492 ft	5.91 "	2.5 mm	0.098 in	Tin		1	35.4 µin	0.9 µm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1200	$ 3.75
Newark	Each	250	$ 4.36

General part information

Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Female-Female, Single Row, 450.00mm Length, 7 Circuits, Natural
