C102-F9R-0

Obsolete

u-blox

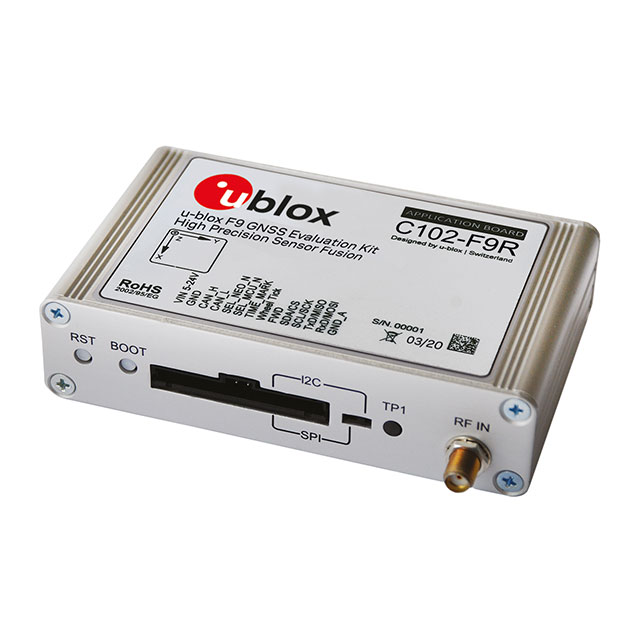

EVAL BOARD FOR ZED-F9R

Search across all available documentation for this part.

Obsolete

u-blox

EVAL BOARD FOR ZED-F9R

Technical Specifications

Parameters and characteristics for this part

Specification	C102-F9R-0

For Use With/Related Products	ZED-F9R
Supplied Contents	Board(s), Accessories, Cable(s)
Type	GNSS

Part	Modulation or Protocol	Mounting Type	Data Interface	Data Rate (Max)	Frequency	Sensitivity	Supplier Device Package	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Type	Supplied Contents	Frequency [Min]	Frequency [Max]
u-blox ZED-F9R-00B	BeiDou Galileo GLONASS GNSS GPS	Surface Mount	I2C SPI UART USB	921.6 kbps	1.207 GHz 1.227 GHz 1.246 GHz 1.561 GHz 1.575 GHz 1.602 GHz	-160 dBm	54-LGA (22x17)	GPS	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V
u-blox C102-F9R-0														ZED-F9R	GNSS	Accessories Board(s) Cable(s)
u-blox ZED-F9P-02B	BeiDou Galileo GLONASS GNSS GPS	Surface Mount	I2C SPI UART USB	921.6 kbps		-167 dBm	54-LGA (22x17)	General Purpose	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V				1.2276 GHz	1.575 GHz
u-blox ZED-F9R-01B	BeiDou Galileo GLONASS GNSS GPS	Surface Mount	I2C SPI UART USB	921.6 kbps	1.207 GHz 1.227 GHz 1.246 GHz 1.561 GHz 1.575 GHz 1.602 GHz	-160 dBm	54-LGA (22x17)	GPS	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- ZED-F9R GNSS Evaluation Board

Technical documentation and resources

No documents available
