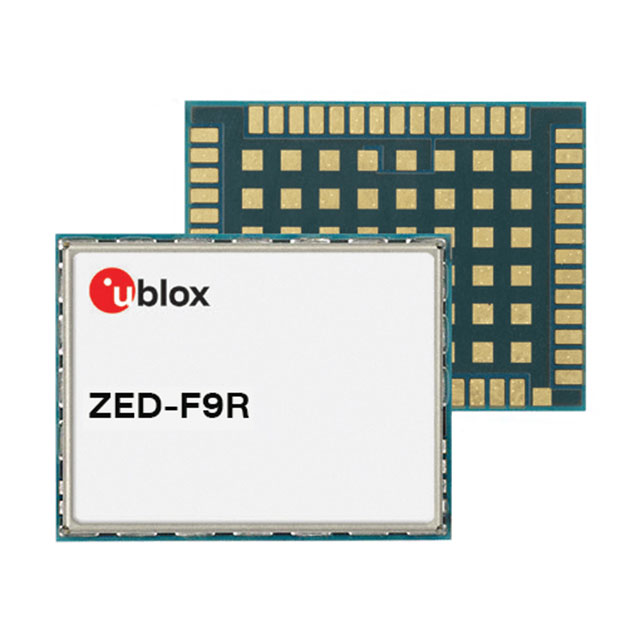

ZED-F9R-01B
u-blox
MOD RF SENSOR FUSION GNSS RTK
Deep-Dive with AI
Search across all available documentation for this part.
ZED-F9R-01B
u-blox
MOD RF SENSOR FUSION GNSS RTK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZED-F9R-01B |
|---|---|
| Applications | GPS |
| Data Interface | UART, SPI, I2C, USB |
| Data Rate (Max) | 921.6 kbps |
| Frequency | 1.227 GHz, 1.246 GHz, 1.602 GHz, 1.561 GHz, 1.207 GHz, 1.575 GHz |
| Modulation or Protocol | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 54-SMD Module |
| Sensitivity | -160 dBm |
| Supplier Device Package | 54-LGA (22x17) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 149.00 | |
| 10 | $ 148.50 | |||
| 50 | $ 141.05 | |||
| Digi-Reel® | 1 | $ 149.00 | ||
| 10 | $ 148.50 | |||
| 50 | $ 141.05 | |||
| Tape & Reel (TR) | 250 | $ 134.01 | ||
Description
General part information
ZED-F9 Series
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.207GHz, 1.227GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz -160dBm 921.6kbps 54-LGA (22x17)
Documents
Technical documentation and resources
No documents available
