78253/35C

Active

Murata Power Solutions Inc.

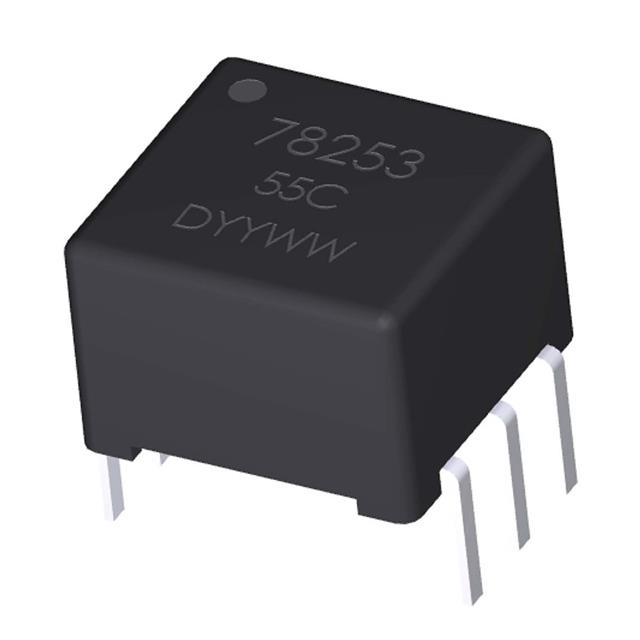

SMPS TRANSFORMER, CONVERTER, 100 MA, 500KHZ, 500 MW, 1.5 KV, 3.3V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, CONVERTER, 100 MA, 500KHZ, 500 MW, 1.5 KV, 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	78253/35C

For Use With/Related Products	MAX253
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Inductance	380 µH
Mounting Type	Through Hole
Size / Dimension [x]	9.52 mm
Size / Dimension [x]	0.375 in
Size / Dimension [y]	0.354 in
Size / Dimension [y]	9 mm

Part	For Use With/Related Products	Inductance	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Weight	Weight	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight
Murata Power Solutions Inc. 78253/35MC-R	MAX253	380 µH	Surface Mount	6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55JVC	MAX253	360 µH	Surface Mount			0.91 g	0.002 lb	0.26 in	6.6 mm
Murata Power Solutions Inc. 78253/35MVC	MAX253	142 µH	Surface Mount			1 g	0.035 oz	0.26 in	6.6 mm
Murata Power Solutions Inc. 78253/35C	MAX253	380 µH	Through Hole	6.35 mm	0.25 in					9.52 mm	0.354 in	0.375 in	9 mm
Murata Power Solutions Inc. 78253/35JVC-R	MAX253	142 µH	Surface Mount	6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55C	MAX253	830 µH	Through Hole			0.04 oz		0.26 in	6.6 mm					1.14 g
Murata Power Solutions Inc. 78253/55MVC	MAX253	240 µH	Surface Mount			0.04 oz		0.26 in	6.6 mm					1.14 g
Murata Power Solutions Inc. 78253/55JC-R	MAX253	830 µH	Surface Mount	6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55JC	MAX253	360 µH	Surface Mount			0.91 g	0.002 lb	0.26 in	6.6 mm
Murata Power Solutions Inc. 78253/35MVC-R	MAX253	142 µH	Surface Mount	6.35 mm	0.25 in
