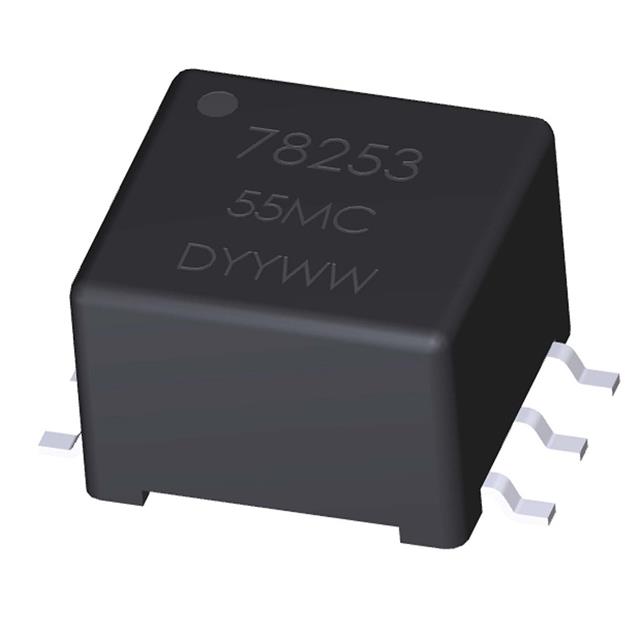

78253/35MVC

Murata Power Solutions Inc.

SMPS TRANSFORMER, CONVERTER, 100 MA, 500KHZ, 500 MW, 4 KV, 3.3V

Search across all available documentation for this part.

Murata Power Solutions Inc.

SMPS TRANSFORMER, CONVERTER, 100 MA, 500KHZ, 500 MW, 4 KV, 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	78253/35MVC

For Use With/Related Products	MAX253
Height - Seated (Max) [Max] [z]	0.26 in
Height - Seated (Max) [Max] [z]	6.6 mm
Inductance	142 µH
Mounting Type	Surface Mount
Weight	1 g
Weight	0.035 oz

Part	For Use With/Related Products	Inductance	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Weight	Weight	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight
Murata Power Solutions Inc. 78253/35MC-R	MAX253	380 µH	Surface Mount	6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55JVC	MAX253	360 µH	Surface Mount			0.91 g	0.002 lb	0.26 in	6.6 mm
Murata Power Solutions Inc. 78253/35MVC	MAX253	142 µH	Surface Mount			1 g	0.035 oz	0.26 in	6.6 mm
Murata Power Solutions Inc. 78253/35C	MAX253	380 µH	Through Hole	6.35 mm	0.25 in					9.52 mm	0.354 in	0.375 in	9 mm
Murata Power Solutions Inc. 78253/35JVC-R	MAX253	142 µH	Surface Mount	6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55C	MAX253	830 µH	Through Hole			0.04 oz		0.26 in	6.6 mm					1.14 g
Murata Power Solutions Inc. 78253/55MVC	MAX253	240 µH	Surface Mount			0.04 oz		0.26 in	6.6 mm					1.14 g
Murata Power Solutions Inc. 78253/55JC-R	MAX253	830 µH	Surface Mount	6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55JC	MAX253	360 µH	Surface Mount			0.91 g	0.002 lb	0.26 in	6.6 mm
Murata Power Solutions Inc. 78253/35MVC-R	MAX253	142 µH	Surface Mount	6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPS TRANSFORMER, CONVERTER, 100 MA, 500KHZ, 500 MW, 4 KV, 3.3V

Technical documentation and resources
