PXPTPU08RAM05BCL010PUR

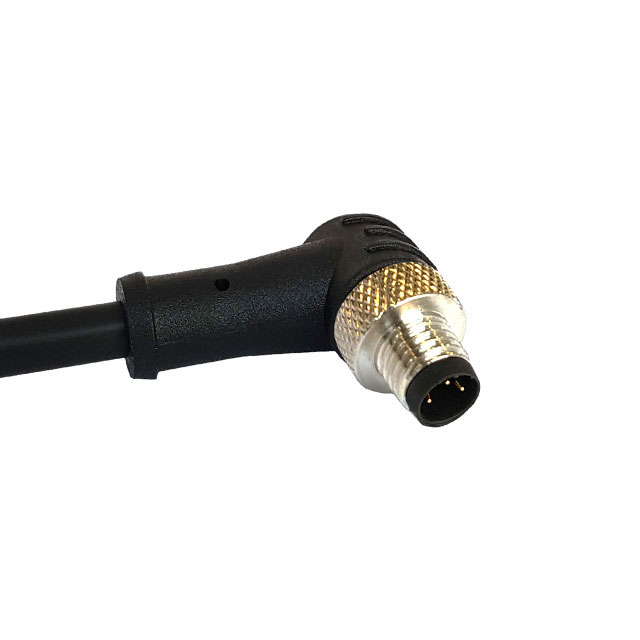

ActiveSENSOR CABLE, 90° M8 PLUG, FREE END, 5 POSITIONS, 1 M, 3.3 FT, BUCCANEER M8 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
PXPTPU08RAM05BCL010PUR
ActiveSENSOR CABLE, 90° M8 PLUG, FREE END, 5 POSITIONS, 1 M, 3.3 FT, BUCCANEER M8 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXPTPU08RAM05BCL010PUR |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | B |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Receptacle, Right Angle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
PXPTPU Series
| Part | 2nd Connector Orientation | 2nd Connector Mounting Type | 1st Connector Shell Size - Insert | 1st Connector Mounting Type | 2nd Connector Number of Positions Loaded | 1st Connector Number of Positions | Assembly Configuration | Cable Material | Cable Type | Color | 2nd Connector Type | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions | Ingress Protection | Usage | 1st Connector Orientation | 1st Connector Type | 2nd Connector Shell Size - Insert | 1st Connector Gender | Length [x] | Length [x] | Shielding | 1st Connector Number of Positions [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Shell Material | Connector Type | Current Rating (Amps) | Number of Positions | Primary Material | Contact Finish - Mating | Termination | Mounting Type | Orientation | Insert Material | Features | Voltage Rating | Contact Material | 1st Connector Orientation [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | X | Free Hanging (In-Line) | M12 | Free Hanging (In-Line) | All | 8 positions | Standard | Polyurethane (PUR) | Round | Teal | Receptacle | All | 8 | IP67 - Dust Tight Waterproof | Cat6a Industrial Environments | X | Receptacle | M12 | Male Pins | ||||||||||||||||||||||||||
BULGIN LIMITED | X | Free Hanging (In-Line) | M12 | Free Hanging (In-Line) | All | 8 positions | Standard | Polyurethane (PUR) | Round | Teal | Receptacle | All | 8 | IP67 - Dust Tight Waterproof | Cat6a Industrial Environments | X | Receptacle | M12 | Male Pins | 1 m | 3.28 ft | ||||||||||||||||||||||||
BULGIN LIMITED | M12 | Free Hanging (In-Line) | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | A | Plug Right Angle | Female Sockets | 1 m | 3.28 ft | Unshielded | 12 | ||||||||||||||||||||||||||||
BULGIN LIMITED | Black Silver | IP67 - Dust Tight Waterproof | Unshielded | 0.236 in 0.472 in | 12 mm | 6 mm | -25 °C | 85 °C | 1 µin | 0.025 µm | UL94 V-0 | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pins Plug | 9 A | 4 | Plastic | Gold | Screw | Free Hanging (In-Line) Right Angle | A | Glass Filled Nylon 6/6 Polyamide (PA66) | Backshell | 300 VDC | Brass | |||||||||||||||||||||
BULGIN LIMITED | M8 | Free Hanging (In-Line) | 4 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | Plug | Female Sockets | 1 m | 3.28 ft | Unshielded | P | ||||||||||||||||||||||||||||
BULGIN LIMITED | M5 | Free Hanging (In-Line) | 4 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | A | Receptacle Right Angle | Male Pins | 1 m | 3.28 ft | Unshielded | ||||||||||||||||||||||||||||
BULGIN LIMITED | Round | Teal | Cat6a Industrial Environments - IP67 | 2 m | 6.56 ft | Circular 08 pos Female to RJ45 8p8c | |||||||||||||||||||||||||||||||||||||||
BULGIN LIMITED | M8 | Free Hanging (In-Line) | 5 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | B | Receptacle Right Angle | Male Pins | 1 m | 3.28 ft | Unshielded | ||||||||||||||||||||||||||||
BULGIN LIMITED | M12 | Free Hanging (In-Line) | 5 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | B | Plug Right Angle | Female Sockets | 1 m | 3.28 ft | Unshielded | ||||||||||||||||||||||||||||
BULGIN LIMITED | M12 | Free Hanging (In-Line) | 4 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | T | Plug | Female Sockets | 1 m | 3.28 ft | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXPTPU Series
The M-series Buccaneer circular automation connectors from Bulgin provide an ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. Featuring a M-style threaded locking nut, Bulgin’s M-series offers an extensive choice of robust industry standard interconnect solutions for automation and control applications including M5 (waterproof), M8, M12, M16 and M23 variants. With A, B, D coded connector variants available throughout the range, Bulgin’s automation connectors are ideal for ensuring consistent and reliable actuator/sensor, fieldbus and Ethernet connections. Designed to decrease downtime and increase production efficiency, M-series provides reliable and uncompromised data, signal and power transmissions for industrial automation systems in harsh environments. These IP67 rated connectors range include field installable connectors, receptacles and overmoulded cable variants.
