PXPTPU12RAF05BCL010PUR
ActiveBULGIN LIMITED

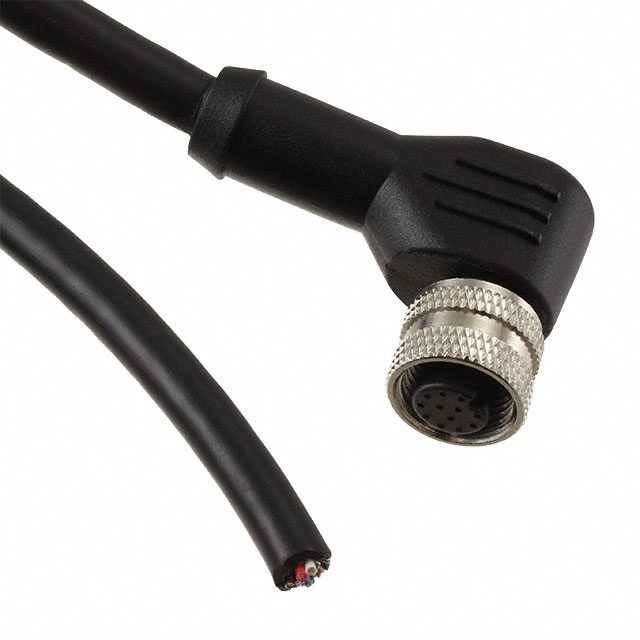

CBL 5POS PLUG RA TO WIRE 3.28'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PXPTPU12RAF05BCL010PUR
ActiveBULGIN LIMITED
CBL 5POS PLUG RA TO WIRE 3.28'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PXPTPU12RAF05BCL010PUR |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | B |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug, Right Angle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
PXPTPU Series
| Part | 2nd Connector Orientation | 2nd Connector Mounting Type | 1st Connector Shell Size - Insert | 1st Connector Mounting Type | 2nd Connector Number of Positions Loaded | 1st Connector Number of Positions | Assembly Configuration | Cable Material | Cable Type | Color | 2nd Connector Type | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions | Ingress Protection | Usage | 1st Connector Orientation | 1st Connector Type | 2nd Connector Shell Size - Insert | 1st Connector Gender | Length [x] | Length [x] | Shielding | 1st Connector Number of Positions [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Shell Material | Connector Type | Current Rating (Amps) | Number of Positions | Primary Material | Contact Finish - Mating | Termination | Mounting Type | Orientation | Insert Material | Features | Voltage Rating | Contact Material | 1st Connector Orientation [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | X | Free Hanging (In-Line) | M12 | Free Hanging (In-Line) | All | 8 positions | Standard | Polyurethane (PUR) | Round | Teal | Receptacle | All | 8 | IP67 - Dust Tight Waterproof | Cat6a Industrial Environments | X | Receptacle | M12 | Male Pins | ||||||||||||||||||||||||||
BULGIN LIMITED | X | Free Hanging (In-Line) | M12 | Free Hanging (In-Line) | All | 8 positions | Standard | Polyurethane (PUR) | Round | Teal | Receptacle | All | 8 | IP67 - Dust Tight Waterproof | Cat6a Industrial Environments | X | Receptacle | M12 | Male Pins | 1 m | 3.28 ft | ||||||||||||||||||||||||
BULGIN LIMITED | M12 | Free Hanging (In-Line) | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | A | Plug Right Angle | Female Sockets | 1 m | 3.28 ft | Unshielded | 12 | ||||||||||||||||||||||||||||
BULGIN LIMITED | Black Silver | IP67 - Dust Tight Waterproof | Unshielded | 0.236 in 0.472 in | 12 mm | 6 mm | -25 °C | 85 °C | 1 µin | 0.025 µm | UL94 V-0 | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pins Plug | 9 A | 4 | Plastic | Gold | Screw | Free Hanging (In-Line) Right Angle | A | Glass Filled Nylon 6/6 Polyamide (PA66) | Backshell | 300 VDC | Brass | |||||||||||||||||||||
BULGIN LIMITED | M8 | Free Hanging (In-Line) | 4 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | Plug | Female Sockets | 1 m | 3.28 ft | Unshielded | P | ||||||||||||||||||||||||||||
BULGIN LIMITED | M5 | Free Hanging (In-Line) | 4 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | A | Receptacle Right Angle | Male Pins | 1 m | 3.28 ft | Unshielded | ||||||||||||||||||||||||||||
BULGIN LIMITED | Round | Teal | Cat6a Industrial Environments - IP67 | 2 m | 6.56 ft | Circular 08 pos Female to RJ45 8p8c | |||||||||||||||||||||||||||||||||||||||
BULGIN LIMITED | M8 | Free Hanging (In-Line) | 5 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | B | Receptacle Right Angle | Male Pins | 1 m | 3.28 ft | Unshielded | ||||||||||||||||||||||||||||
BULGIN LIMITED | M12 | Free Hanging (In-Line) | 5 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | B | Plug Right Angle | Female Sockets | 1 m | 3.28 ft | Unshielded | ||||||||||||||||||||||||||||
BULGIN LIMITED | M12 | Free Hanging (In-Line) | 4 | Standard | Polyurethane (PUR) | Round | Black | Wire Leads | All | IP67 - Dust Tight Waterproof | Industrial Environments | T | Plug | Female Sockets | 1 m | 3.28 ft | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.96 | |
| 10 | $ 23.77 | |||
| 25 | $ 22.28 | |||
| 50 | $ 21.22 | |||
| 100 | $ 20.20 | |||
| 250 | $ 18.94 | |||
| 500 | $ 18.06 | |||
Description
General part information
PXPTPU Series
Circular Cable Assembly Unshielded 3.28' (1.00m)
