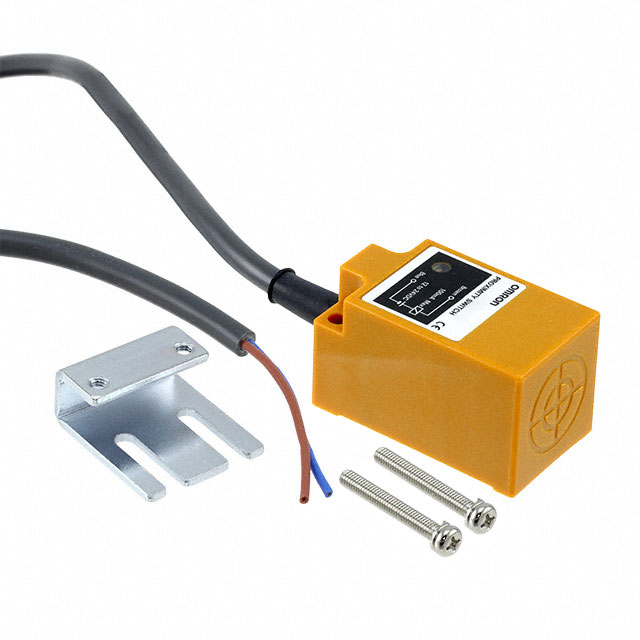

TL-N20MD1

Active

Omron Electronics Inc-EMC Div

SENSOR PROX INDUCT 20MM IP67 MOD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SENSOR PROX INDUCT 20MM IP67 MOD

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Sensing Distance	Sensing Distance	Indicator [custom]	Output Type	Shielding	Material - Body	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Response Frequency	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type
Omron Electronics Inc-EMC Div TL-N20ME2	Cable Leads	0.787 in	20 mm	LED	NPN-NC 3-Wire	Unshielded	Plastic	30 VDC	10 VDC	Module	40 Hz	IP67	70 °C	-25 °C	Inductive
Omron Electronics Inc-EMC Div TL-N20ME1 5M	Cable Leads	0.787 in	20 mm	LED	NPN-NO 3-Wire	Unshielded	Plastic	30 VDC	10 VDC	Module	40 Hz	IP67	70 °C	-25 °C	Inductive
Omron Electronics Inc-EMC Div TL-N20ME15 2M	Cable Leads	0.787 in	20 mm	LED	NPN-NO 3-Wire	Unshielded	Plastic	30 VDC	10 VDC	Module		IP67	70 °C	-25 °C	Inductive
Omron Electronics Inc-EMC Div TL-N20MD2	Cable Leads	0.787 in	20 mm	LED	NPN-NC 2-Wire	Unshielded	Plastic	30 VDC	10 VDC	Module	300 Hz	IP67	70 °C	-25 °C	Inductive
Omron Electronics Inc-EMC Div TL-N20ME1	Cable Leads	0.787 in	20 mm	LED	NPN-NO 3-Wire	Unshielded	Plastic	30 VDC	10 VDC	Module	40 Hz	IP67	70 °C	-25 °C	Inductive
Omron Electronics Inc-EMC Div TL-N20MD1	Cable Leads	0.787 in	20 mm	LED	2-Wire NPN-NO	Unshielded	Plastic	30 VDC	10 VDC	Module	300 Hz	IP67	70 °C	-25 °C	Inductive
Omron Electronics Inc-EMC Div TL-N20MY2	Cable Leads	0.787 in	20 mm	LED	SCR-NC 2-Wire	Unshielded	Plastic	250 VAC	90 VAC	Module	10 Hz	IP67	70 °C	-25 °C	Inductive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX INDUCT 20MM IP67 MOD

Technical documentation and resources
