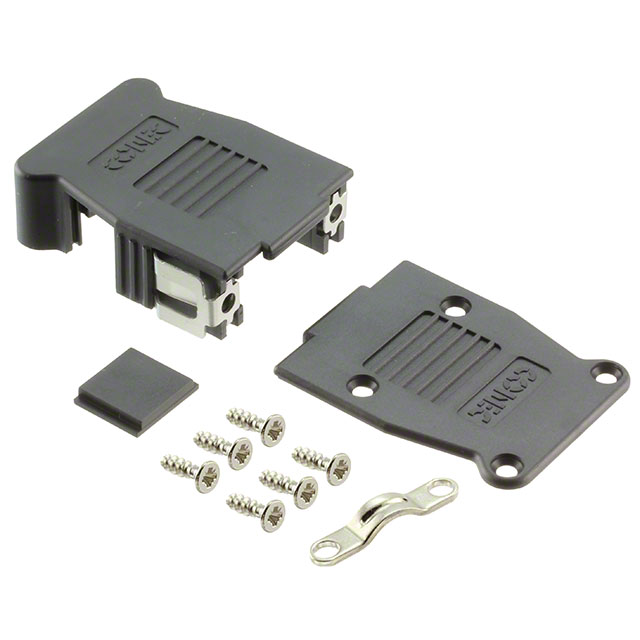

16-001810E

Active

Amphenol CONEC

D SUB BACKSHELL, 90/180DEG, DE, ABS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB BACKSHELL, 90/180DEG, DE, ABS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	16-001810E

Accessory Type	Two Piece Backshell
Cable Exit	90°, 180°
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Snap Lock
Hardware	Assembly Hardware, Strain Relief
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

Part	Features	Compatible Shell Size	Hardware	Accessory Type	Cable Type	Number of Positions	Primary Material	Shielding	Compatible D-Sub Size	Color	Cable Exit	Material
Amphenol CONEC 16-001840E	Snap Lock	C	Assembly Hardware Strain Relief	Two Piece Backshell	Round	37	Plastic	Unshielded	37pos HD62pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)
Amphenol CONEC 16-001830E	Snap Lock	B	Assembly Hardware Strain Relief	Two Piece Backshell	Round		Plastic	Unshielded	25pos HD44pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)
Amphenol CONEC 16-001810E	Snap Lock	E	Assembly Hardware Strain Relief	Two Piece Backshell	Round	9	Plastic	Unshielded	9pos HD15pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)
Amphenol CONEC 16-001820E	Snap Lock	A	Assembly Hardware Strain Relief	Two Piece Backshell	Round	15	Plastic	Unshielded	15pos HD26pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Two Piece Backshell Connector Black 90°, 180° Unshielded
