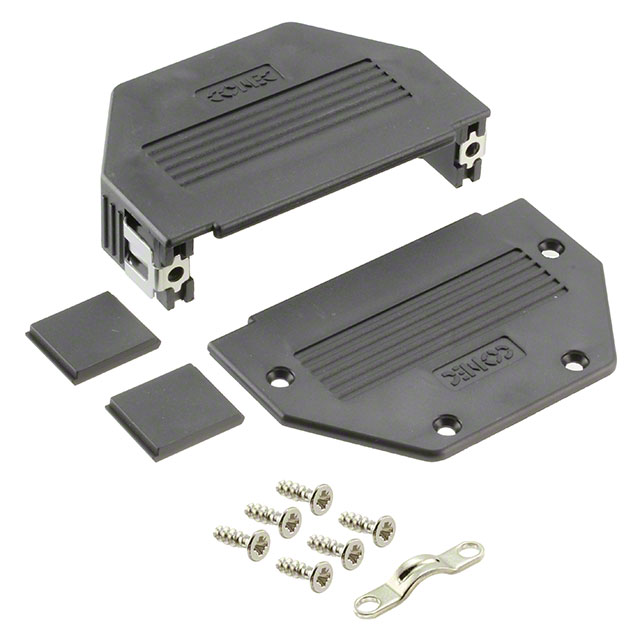

16-001830E

Active

Amphenol CONEC

CONN BACKSHELL 25P 90/180DEG BLK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 25P 90/180DEG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	16-001830E

Accessory Type	Two Piece Backshell
Cable Exit	90°, 180°
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Snap Lock
Hardware	Assembly Hardware, Strain Relief
Material	Acrylonitrile Butadiene Styrene (ABS)
Primary Material	Plastic
Shielding	Unshielded

Part	Features	Compatible Shell Size	Hardware	Accessory Type	Cable Type	Number of Positions	Primary Material	Shielding	Compatible D-Sub Size	Color	Cable Exit	Material
Amphenol CONEC 16-001840E	Snap Lock	C	Assembly Hardware Strain Relief	Two Piece Backshell	Round	37	Plastic	Unshielded	37pos HD62pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)
Amphenol CONEC 16-001830E	Snap Lock	B	Assembly Hardware Strain Relief	Two Piece Backshell	Round		Plastic	Unshielded	25pos HD44pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)
Amphenol CONEC 16-001810E	Snap Lock	E	Assembly Hardware Strain Relief	Two Piece Backshell	Round	9	Plastic	Unshielded	9pos HD15pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)
Amphenol CONEC 16-001820E	Snap Lock	A	Assembly Hardware Strain Relief	Two Piece Backshell	Round	15	Plastic	Unshielded	15pos HD26pos	Black	180° 90°	Acrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position Two Piece Backshell Connector Black 90°, 180° Unshielded
