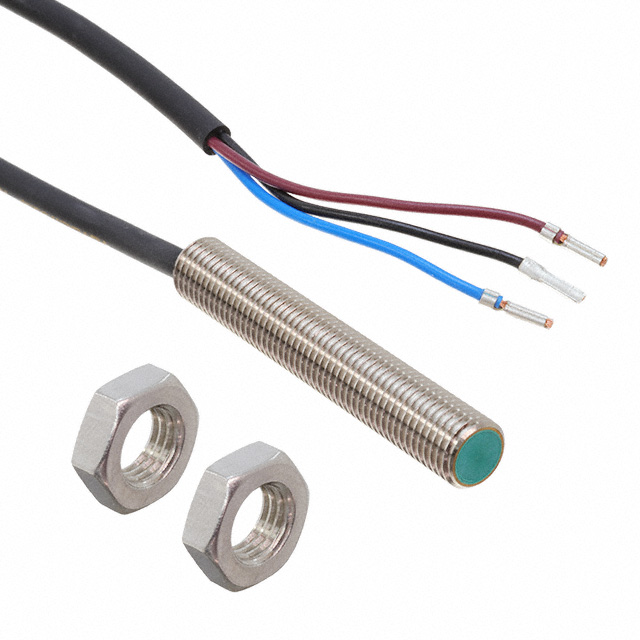

NBB2-8GM50-E2
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED
Deep-Dive with AI
Search across all available documentation for this part.
NBB2-8GM50-E2
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NBB2-8GM50-E2 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 5 V |
NBB2-8 Series
| Part | Indicator [custom] | Ingress Protection | Package / Case | Material - Body | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensor Type | Termination Style | Sensing Distance | Sensing Distance | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Connector | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | NPN-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Connector | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | 4-Wire PNP-NC/NO |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Stainless Steel | 30 VDC | 10 VDC | Inductive | Connector | 0.079 in | 2 mm | 70 °C | -25 °C | Unshielded | PNP-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Connector | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | PNP-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Cable | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | NPN-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Cable | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | PNP-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Connector | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | PNP-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Nickel-Plated Brass | 30 VDC | 5 V | Inductive | Connector | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | PNP-NC 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Stainless Steel | 30 VDC | 5 V | Inductive | Cable | 0.079 in | 2 mm | 85 °C | -40 °C | Unshielded | PNP-NO 3-Wire |
PEPPERL+FUCHS | LED | IP67 | Cylinder Threaded - M8 | Stainless Steel | 30 VDC | 10 VDC | Inductive | Connector | 0.079 in | 2 mm | 70 °C | -25 °C | Unshielded | PNP-NO 3-Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NBB2-8 Series
INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED
