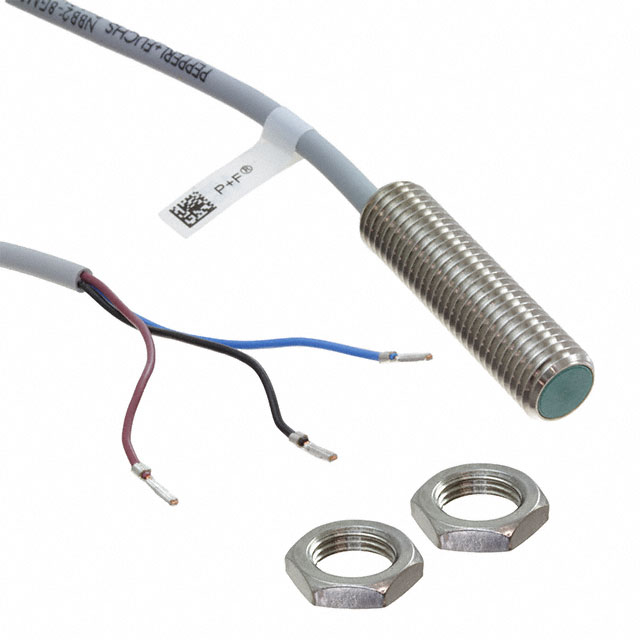

NBB2-8GM30-E0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NPN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB2-8GM30-E0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NPN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB2-8GM30-E0

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN-NO, 3-Wire
Package / Case	Cylinder, Threaded - M8
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	5 V

NBB2-8 Series

Part	Indicator [custom]	Ingress Protection	Package / Case	Material - Body	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Termination Style	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Output Type
PEPPERL+FUCHS NBB2-8GM40-E0-V3	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Connector	0.079 in	2 mm	85 °C	-40 °C	Unshielded	NPN-NO 3-Wire
PEPPERL+FUCHS NBB2-8GM30-A2-V1	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Connector	0.079 in	2 mm	85 °C	-40 °C	Unshielded	4-Wire PNP-NC/NO
PEPPERL+FUCHS NBB2-8GH40-E2-V3	LED	IP67	Cylinder Threaded - M8	Stainless Steel	30 VDC	10 VDC	Inductive	Connector	0.079 in	2 mm	70 °C	-25 °C	Unshielded	PNP-NO 3-Wire
PEPPERL+FUCHS NBB2-8GM30-E2-V1	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Connector	0.079 in	2 mm	85 °C	-40 °C	Unshielded	PNP-NO 3-Wire
PEPPERL+FUCHS NBB2-8GM30-E0	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Cable	0.079 in	2 mm	85 °C	-40 °C	Unshielded	NPN-NO 3-Wire
PEPPERL+FUCHS NBB2-8GM50-E2	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Cable	0.079 in	2 mm	85 °C	-40 °C	Unshielded	PNP-NO 3-Wire
PEPPERL+FUCHS NBB2-8GM40-E2-V3	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Connector	0.079 in	2 mm	85 °C	-40 °C	Unshielded	PNP-NO 3-Wire
PEPPERL+FUCHS NBB2-8GM25-E3-V3	LED	IP67	Cylinder Threaded - M8	Nickel-Plated Brass	30 VDC	5 V	Inductive	Connector	0.079 in	2 mm	85 °C	-40 °C	Unshielded	PNP-NC 3-Wire
PEPPERL+FUCHS NBB2-8GS40-E2-PUR	LED	IP67	Cylinder Threaded - M8	Stainless Steel	30 VDC	5 V	Inductive	Cable	0.079 in	2 mm	85 °C	-40 °C	Unshielded	PNP-NO 3-Wire
PEPPERL+FUCHS NBB2-8GH20-E2-V3	LED	IP67	Cylinder Threaded - M8	Stainless Steel	30 VDC	10 VDC	Inductive	Connector	0.079 in	2 mm	70 °C	-25 °C	Unshielded	PNP-NO 3-Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 113.93
		5	$ 105.96
		10	$ 102.99
		25	$ 99.44
		50	$ 97.01
		100	$ 94.77

Description

General part information

NBB2-8 Series

INDUCTIVE SEN 2MM NPN
