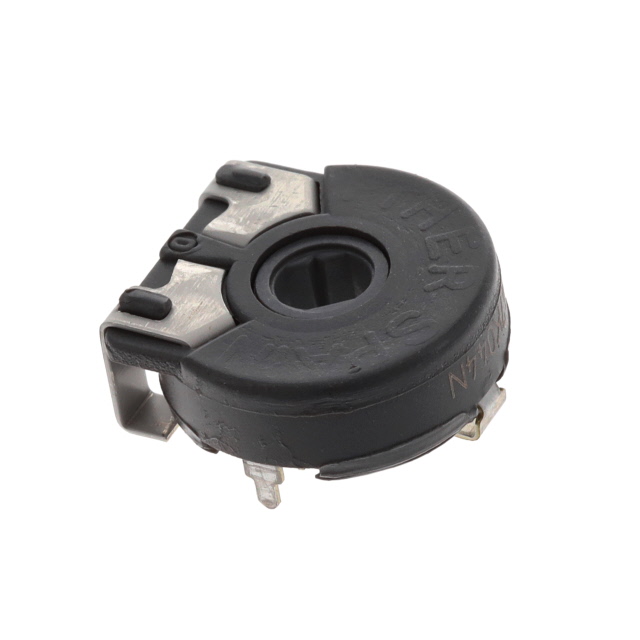

PS15NV60-473A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 47K OHM 0.25W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS15NV60-473A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 47K OHM 0.25W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS15NV60-473A3030 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 47 kOhms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 5 | $ 1.54 | |||
| 10 | $ 1.43 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.12 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 5 | $ 1.54 | |||
| 10 | $ 1.43 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.12 | |||
| Tape & Reel (TR) | 500 | $ 0.67 | ||
Description
General part information
PS15NV60 Series
47 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
