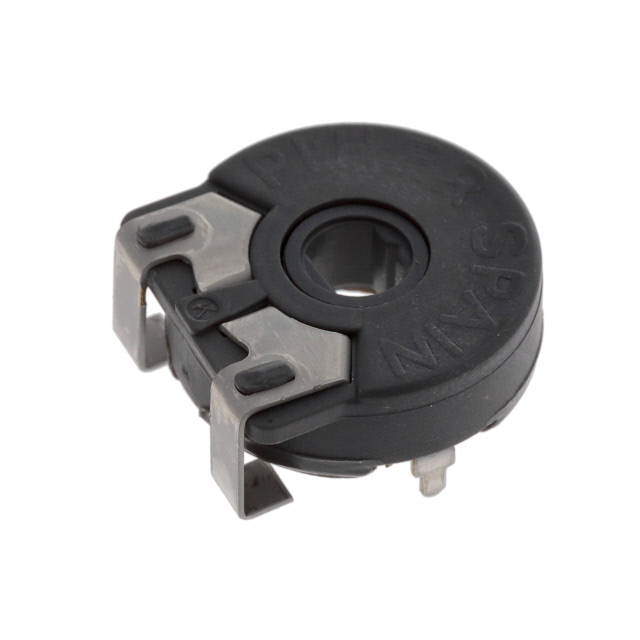

PS15NV60-103A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.25W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS15NV60-103A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.25W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS15NV60-103A3030-PM |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 10000 Ohms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Temperature Coefficient | 1500 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.55 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.14 | |||
| Tape & Reel (TR) | 500 | $ 1.06 | ||
| 1000 | $ 1.00 | |||
| 1500 | $ 0.96 | |||
| 2500 | $ 0.91 | |||
| 3500 | $ 0.88 | |||
| 5000 | $ 0.85 | |||
| 12500 | $ 0.78 | |||
Description
General part information
PS15NV60 Series
10 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
