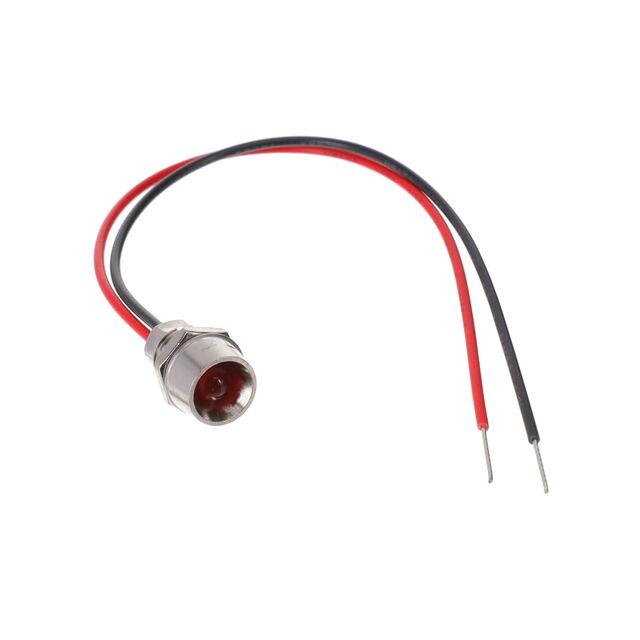

SSI-LXR4815ID-150

Active

Lumex Opto/Components Inc.

LED 5MM RED DIFF REFL6"LDS PNLMT

Deep-Dive with AI

Search across all available documentation for this part.

SSI-LXR4815ID-150

Active

Lumex Opto/Components Inc.

LED 5MM RED DIFF REFL6"LDS PNLMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSI-LXR4815ID-150

Current	30 mA
Lamp Color	Red
Lens Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	40 mcd
Panel Cutout Dimensions	8.13 mm
Panel Cutout Dimensions	0.32 in
Panel Cutout Shape	Round
Type	LED
Viewing Angle	60 °
Voltage	2 V
Wavelength - Peak	635 nm

SSI-LXR4815 Series

Part	Viewing Angle	Lamp Color	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Voltage	Type	Lens Size	Lens Size	Wavelength - Peak	Lens Style	Lens Transparency	Millicandela Rating	Panel Cutout Shape	Current	Current [custom]	Current [custom]
Lumex Opto/Components Inc. SSI-LXR4815GD-600	60 °	Green	609.6 mm	24 in	Wire Leads	8.13 mm	0.32 in	Green	2.2 V	LED	T-1 3/4	5 mm	565 nm	Round with Domed Top	Diffused	30 mcd	Round
Lumex Opto/Components Inc. SSI-LXR4815SRD	60 °	Red				8.13 mm	0.32 in	Red	1.8 V	LED	T-1 3/4	5 mm	660 nm	Round with Domed Top	Diffused	300 mcd	Round	30 mA
Lumex Opto/Components Inc. SSI-LXR4815ID-WR
Lumex Opto/Components Inc. SSI-LXR4815HGW-150	60 °	Green Red				8.13 mm	0.32 in	White	2 V 2.2 V	LED	T-1 3/4	5 mm	565 nm 700 nm	Round with Domed Top	Diffused	5 mcd 8 mcd	Round		25 mA	25 mA
Lumex Opto/Components Inc. SSI-LXR4815SRD-150	60 °	Red				8.2 mm	0.32 in	Red	1.8 V	LED	T-1 3/4	5 mm	660 nm	Round with Domed Top	Diffused	300 mcd	Round	30 mA
Lumex Opto/Components Inc. SSI-LXR4815SYD150B	60 °	Yellow				8.13 mm	0.32 in	Yellow	2.1 V	LED	T-1 3/4	5 mm	590 nm	Round with Domed Top	Diffused	200 mcd	Round
Lumex Opto/Components Inc. SSI-LXR4815USBD150	60 °	Blue				8.13 mm	0.32 in	Blue	3.5 V	LED	T-1 3/4	5 mm		Round with Domed Top	Diffused	250 mcd	Round
Lumex Opto/Components Inc. SSI-LXR4815GD	60 °	Green				8.13 mm	0.32 in	Green	2.2 V	LED	T-1 3/4	5 mm	565 nm	Round with Domed Top	Diffused	30 mcd	Round	25 mA
Lumex Opto/Components Inc. SSI-LXR4815-Q21742	20 °	Green				8.13 mm	0.32 in	Colorless	3.7 V	LED	T-1 3/4	5 mm	525 nm	Round with Domed Top	Clear	14000 mcd	Round
Lumex Opto/Components Inc. SSI-LXR4815ID-150	60 °	Red				8.13 mm	0.32 in	Red	2 V	LED	T-1 3/4	5 mm	635 nm	Round with Domed Top	Diffused	40 mcd	Round	30 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.10
		10	$ 2.19
		100	$ 1.79
		500	$ 1.51
		1000	$ 1.39
		2000	$ 1.33
		5000	$ 1.30

Description

General part information

SSI-LXR4815 Series

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Documents

Technical documentation and resources

No documents available
