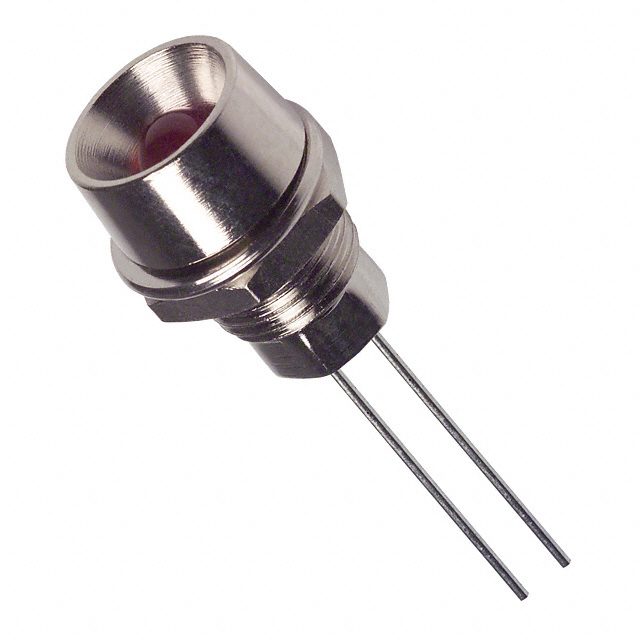

SSI-LXR4815SRD
ActiveLumex Opto/Components Inc.
LED 5MM SUP RED DIFF REFL PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXR4815SRD
ActiveLumex Opto/Components Inc.
LED 5MM SUP RED DIFF REFL PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXR4815SRD |
|---|---|
| Current | 30 mA |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 300 mcd |
| Panel Cutout Dimensions | 8.13 mm |
| Panel Cutout Dimensions | 0.32 in |
| Panel Cutout Shape | Round |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 1.8 V |
| Wavelength - Peak | 660 nm |
SSI-LXR4815 Series
| Part | Viewing Angle | Lamp Color | Termination Style | Termination Style | Termination Style | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Color | Voltage | Type | Lens Size | Lens Size | Wavelength - Peak | Lens Style | Lens Transparency | Millicandela Rating | Panel Cutout Shape | Current | Current [custom] | Current [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | 60 ° | Green | 609.6 mm | 24 in | Wire Leads | 8.13 mm | 0.32 in | Green | 2.2 V | LED | T-1 3/4 | 5 mm | 565 nm | Round with Domed Top | Diffused | 30 mcd | Round | |||
Lumex Opto/Components Inc. | 60 ° | Red | 8.13 mm | 0.32 in | Red | 1.8 V | LED | T-1 3/4 | 5 mm | 660 nm | Round with Domed Top | Diffused | 300 mcd | Round | 30 mA | |||||
Lumex Opto/Components Inc. | ||||||||||||||||||||
Lumex Opto/Components Inc. | 60 ° | Green Red | 8.13 mm | 0.32 in | White | 2 V 2.2 V | LED | T-1 3/4 | 5 mm | 565 nm 700 nm | Round with Domed Top | Diffused | 5 mcd 8 mcd | Round | 25 mA | 25 mA | ||||
Lumex Opto/Components Inc. | 60 ° | Red | 8.2 mm | 0.32 in | Red | 1.8 V | LED | T-1 3/4 | 5 mm | 660 nm | Round with Domed Top | Diffused | 300 mcd | Round | 30 mA | |||||
Lumex Opto/Components Inc. | 60 ° | Yellow | 8.13 mm | 0.32 in | Yellow | 2.1 V | LED | T-1 3/4 | 5 mm | 590 nm | Round with Domed Top | Diffused | 200 mcd | Round | ||||||
Lumex Opto/Components Inc. | 60 ° | Blue | 8.13 mm | 0.32 in | Blue | 3.5 V | LED | T-1 3/4 | 5 mm | Round with Domed Top | Diffused | 250 mcd | Round | |||||||
Lumex Opto/Components Inc. | 60 ° | Green | 8.13 mm | 0.32 in | Green | 2.2 V | LED | T-1 3/4 | 5 mm | 565 nm | Round with Domed Top | Diffused | 30 mcd | Round | 25 mA | |||||
Lumex Opto/Components Inc. | 20 ° | Green | 8.13 mm | 0.32 in | Colorless | 3.7 V | LED | T-1 3/4 | 5 mm | 525 nm | Round with Domed Top | Clear | 14000 mcd | Round | ||||||
Lumex Opto/Components Inc. | 60 ° | Red | 8.13 mm | 0.32 in | Red | 2 V | LED | T-1 3/4 | 5 mm | 635 nm | Round with Domed Top | Diffused | 40 mcd | Round | 30 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.05 | |
| 10 | $ 2.16 | |||
| 100 | $ 1.77 | |||
| 1000 | $ 1.37 | |||
| 5000 | $ 1.28 | |||
Description
General part information
SSI-LXR4815 Series
LED Panel Indicator Red Diffused 60° 1.8V 30mA
Documents
Technical documentation and resources
No documents available
