SP1-12-3
ActiveTE Connectivity Measurement Specialties

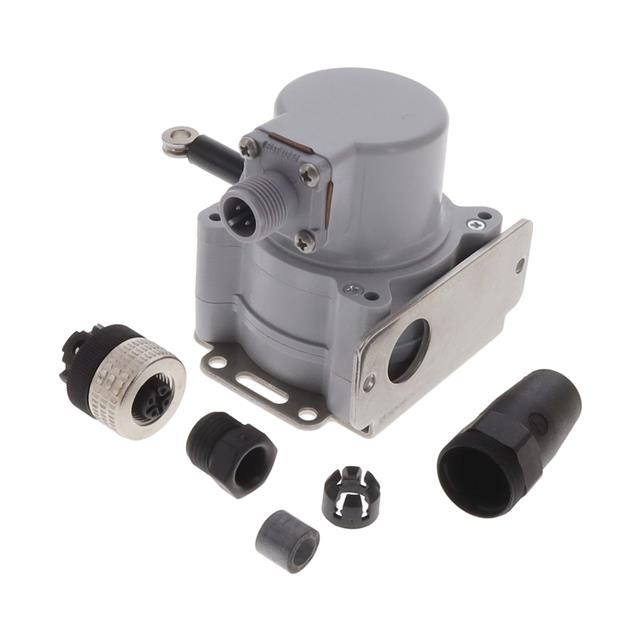

STRING POT 12.5 INCH RANGE W/CON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP1-12-3
ActiveTE Connectivity Measurement Specialties
STRING POT 12.5 INCH RANGE W/CON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP1-12-3 |
|---|---|
| Actuator Type | String Potentiometer |
| For Measuring | Linear Position |
| Linear Range [Max] | 1270 mm |
| Linear Range [Max] | 50 in |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Package / Case | Box with Connector |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 10% |
| Technology | Resistive |
| Termination Style | Connector |
| Voltage - Supply | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 529.49 | |
| 5 | $ 446.74 | |||
| 10 | $ 415.23 | |||
Description
General part information
SP1 Series
Resistive Sensor Linear Position String Potentiometer Connector
