SP1-4
ActiveTE Connectivity Measurement Specialties

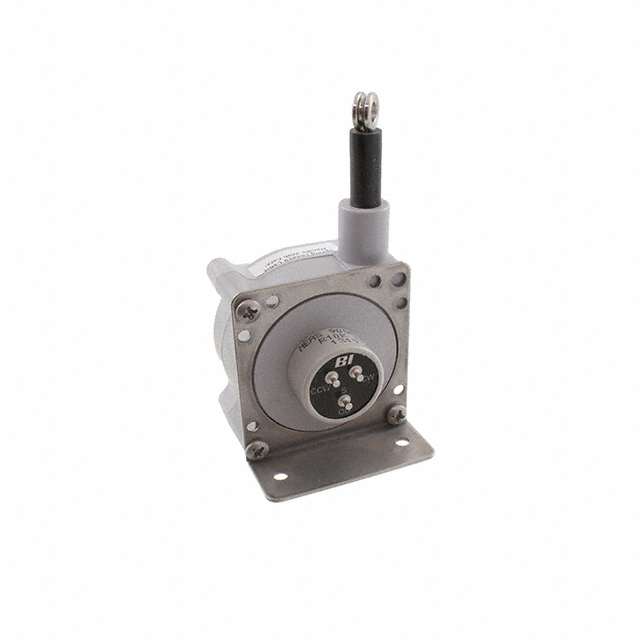

SENSOR LINEAR 120MM SOLDER LUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP1-4 |
|---|---|
| Actuator Type | String Potentiometer |
| For Measuring | Linear Position |
| Linear Range [Max] | 4.75 in |
| Linear Range [Max] | 120 mm |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -18 °C |
| Output | Analog Voltage |
| Package / Case | Box with Connector |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 10% |
| Technology | Resistive |
| Termination Style | Solder Lug |
| Voltage - Supply | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 343.78 | |
| 5 | $ 290.03 | |||
| 10 | $ 269.57 | |||
| 25 | $ 246.60 | |||
Description
General part information
SP1 Series
Resistive Sensor Linear Position String Potentiometer Solder Lug
