Technical Specifications
Parameters and characteristics for this part
| Specification | 2900290 |
|---|---|
| Approval Agency | UKCA, CE |
| Coil Current | 33 mA |
| Coil Resistance | 364 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.68 | |
| 10 | $ 31.47 | |||
| 50 | $ 28.96 | |||
| 100 | $ 26.75 | |||
| 250 | $ 25.49 | |||
Description
General part information
29002 Series

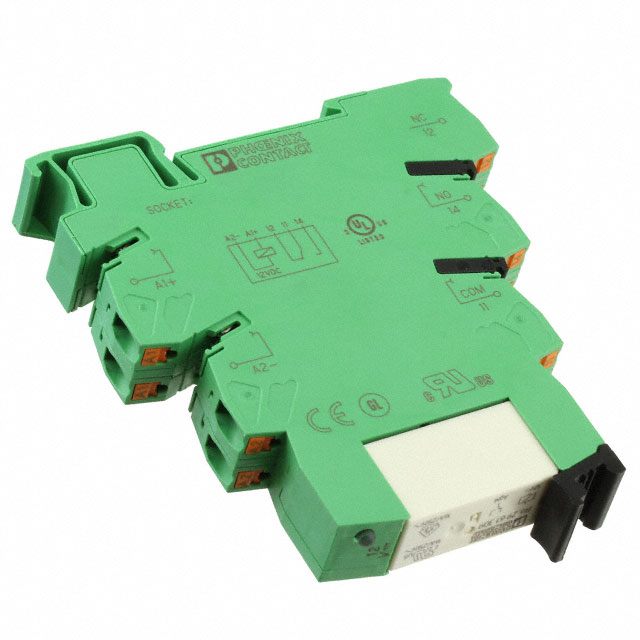

General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
