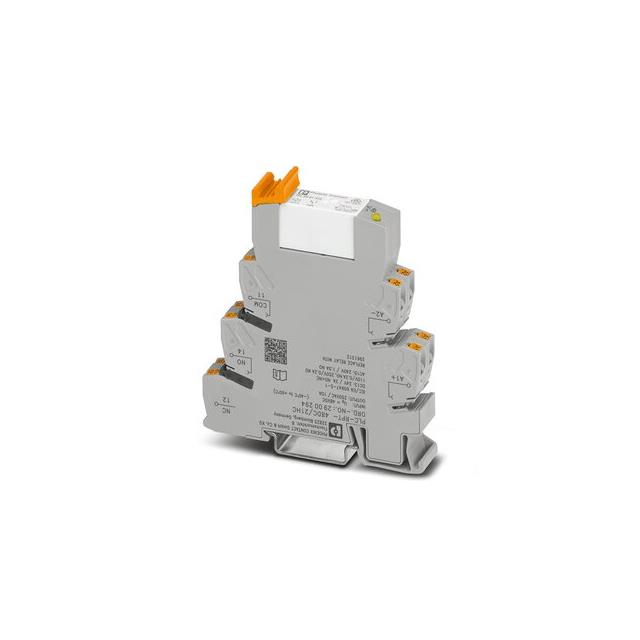

2900294

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2900294

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2900294

Approval Agency	UKCA, CE
Coil Current	20 mA
Coil Resistance	2.4 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

29002 Series

Part	Contact Rating (Current)	Coil Resistance	Coil Current	Coil Voltage	Coil Type	Approval Agency	Mounting Type	Contact Material	Features	Termination Style	Release Time	Relay Type	Contact Form	Operate Time	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2900299	6 A	2.67 kOhms	9 mA	24 VDC	Non Latching	CE UKCA	DIN Rail	Silver Tin Oxide (AgSnO)	Lighted Indicator Socket Included	Spring Terminal	8 ms	General Purpose	SPDT (1 Form C)	5 ms	250 VAC 250 VDC	-40 °C	60 °C
Phoenix Contact 2900297	10 A	51.11 kOhms	4.5 mA	230 VAC	Non Latching	CE UKCA	DIN Rail	Silver Nickel (AgNi)	Lighted Indicator Socket Included	Spring Terminal	10 ms	General Purpose	SPDT (1 Form C)	7 ms	250 VAC 250 VDC	-40 °C	55 °C
Phoenix Contact 2900298	10 A	1333 Ohms	18 mA	24 VDC	Non Latching	CE UKCA	DIN Rail	Silver Tin Oxide (AgSnO)	Lighted Indicator Socket Included	Spring Terminal	10 ms	General Purpose	SPST-NO (1 Form A)	8 ms	250 VAC 250 VDC	-40 °C	60 °C
Phoenix Contact 2900290	10 A	364 Ohms	33 mA	12 VDC	Non Latching	CE UKCA	DIN Rail	Silver Nickel (AgNi)	Lighted Indicator Socket Included	Spring Terminal	10 ms	General Purpose	SPDT (1 Form C)	8 ms	250 VAC 250 VDC	-40 °C	60 °C
Phoenix Contact 2900294	10 A	2.4 kOhms	20 mA	48 VDC	Non Latching	CE UKCA	DIN Rail	Silver Nickel (AgNi)	Diode Lighted Indicator Socket Included	Spring Terminal	10 ms	General Purpose	SPDT (1 Form C)	8 ms	250 VAC 250 VDC	-40 °C	60 °C
Phoenix Contact 2900293	10 A	1.37 kOhms	17.5 mA	24 VAC	Non Latching	CE UKCA	DIN Rail	Silver Nickel (AgNi)	Lighted Indicator Socket Included	Spring Terminal	10 ms	General Purpose	SPDT (1 Form C)	8 ms	250 VAC 250 VDC	-40 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 37.14

Description

General part information

29002 Series

General Purpose Relay SPDT (1 Form C) 48VDC Coil DIN Rail
