CMC 20A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 20A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DKIP-0231-2003

Current Rating (Max) [Max]	20 A
DC Resistance (DCR) (Max) [Max]	10 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Voltage Rating - AC	540 V
Voltage Rating - DC	760 V

Part	Voltage Rating - AC	Package / Case	Number of Lines	Mounting Type	Voltage Rating - DC	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Operating Temperature [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) (Max)
SCHURTER Inc. DKIP-0329-1002	540 V	Nonstandard	3	Chassis Mount	760 V	10 A	15 mOhm	-25 °C 100 °C	1.89 in	48 mm	48 mm	1.89 in
SCHURTER Inc. DKIP-0331-1502	540 V	Nonstandard	3	Through Hole	760 V	15 A		-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "	13 mOhm
SCHURTER Inc. DKIP-0233-3005	540 V	Nonstandard	2	Through Hole	760 V	30 A	12.5 mOhm	-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "
SCHURTER Inc. DKIP-0333-3602	540 V	Nonstandard	3	Through Hole	760 V	36 A	7.6 mOhm	-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "
SCHURTER Inc. DKIP-0231-1505	540 V	Nonstandard	2	Through Hole	760 V	15 A	17 mOhm	-25 °C 100 °C	3.15 in	80 mm	80 mm	3.15 in
SCHURTER Inc. DKIP-0229-1005	540 V	Nonstandard	2	Chassis Mount	760 V	10 A	18 mOhm	-25 °C 100 °C	1.89 in	48 mm	48 mm	1.89 in
SCHURTER Inc. DKIP-0331-1005	540 V	Nonstandard	3	Through Hole	760 V	10 A	32 mOhm	-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "
SCHURTER Inc. DKIP-0231-2003	540 V	Nonstandard	2	Through Hole	760 V	20 A	10 mOhm	-25 °C 100 °C	3.15 in	80 mm	80 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

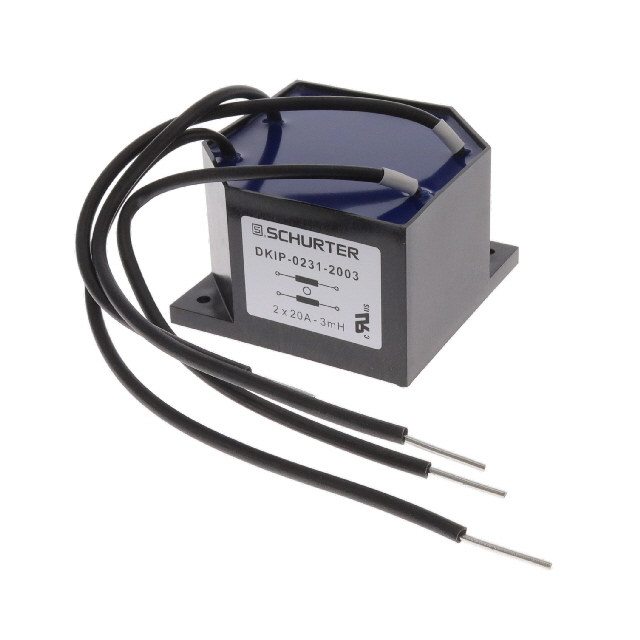

2 Line Common Mode Choke Through Hole 20A DCR 10mOhm
