DKIP-0233-3005

Active

SCHURTER Inc.

CMC 30A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 30A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DKIP-0233-3005

Current Rating (Max) [Max]	30 A
DC Resistance (DCR) (Max) [Max]	12.5 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	4.724 in
Size / Dimension [y]	120 mm
Voltage Rating - AC	540 V
Voltage Rating - DC	760 V

Part	Voltage Rating - AC	Package / Case	Number of Lines	Mounting Type	Voltage Rating - DC	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Operating Temperature [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) (Max)
SCHURTER Inc. DKIP-0329-1002	540 V	Nonstandard	3	Chassis Mount	760 V	10 A	15 mOhm	-25 °C 100 °C	1.89 in	48 mm	48 mm	1.89 in
SCHURTER Inc. DKIP-0331-1502	540 V	Nonstandard	3	Through Hole	760 V	15 A		-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "	13 mOhm
SCHURTER Inc. DKIP-0233-3005	540 V	Nonstandard	2	Through Hole	760 V	30 A	12.5 mOhm	-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "
SCHURTER Inc. DKIP-0333-3602	540 V	Nonstandard	3	Through Hole	760 V	36 A	7.6 mOhm	-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "
SCHURTER Inc. DKIP-0231-1505	540 V	Nonstandard	2	Through Hole	760 V	15 A	17 mOhm	-25 °C 100 °C	3.15 in	80 mm	80 mm	3.15 in
SCHURTER Inc. DKIP-0229-1005	540 V	Nonstandard	2	Chassis Mount	760 V	10 A	18 mOhm	-25 °C 100 °C	1.89 in	48 mm	48 mm	1.89 in
SCHURTER Inc. DKIP-0331-1005	540 V	Nonstandard	3	Through Hole	760 V	10 A	32 mOhm	-25 °C 100 °C	4.724 in	120 mm	120 mm	4.724 "
SCHURTER Inc. DKIP-0231-2003	540 V	Nonstandard	2	Through Hole	760 V	20 A	10 mOhm	-25 °C 100 °C	3.15 in	80 mm	80 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

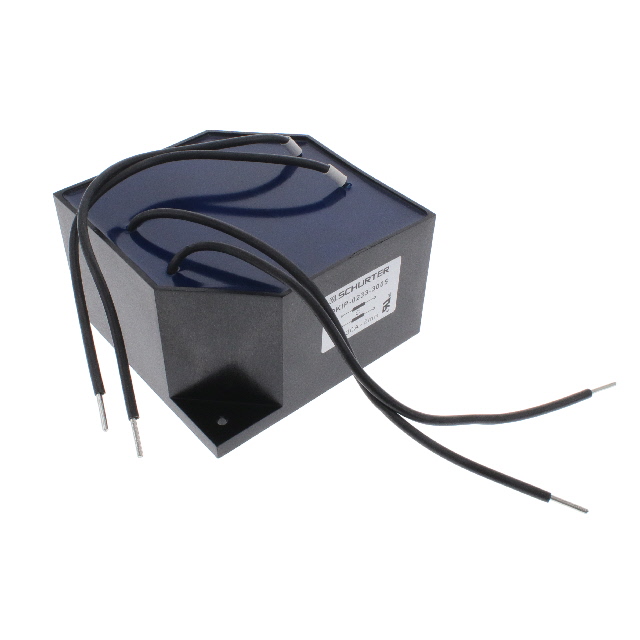

2 Line Common Mode Choke Through Hole 30A DCR 12.5mOhm
