5-104550-1

Unknown

TE Connectivity Raychem Cable Protection

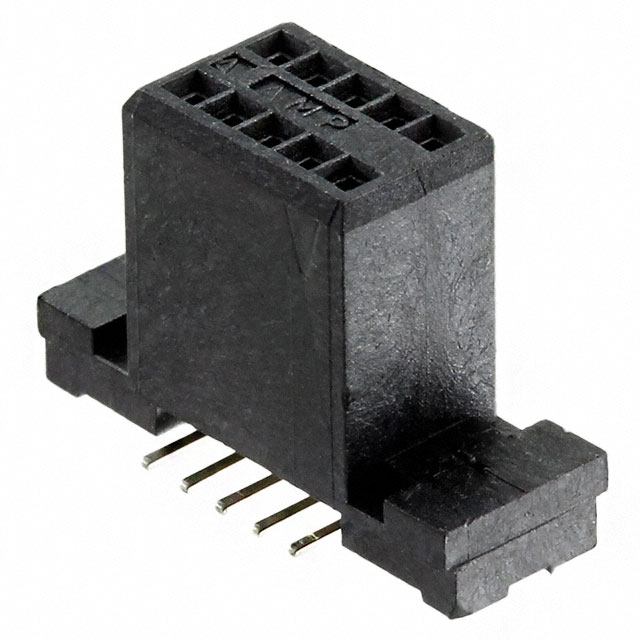

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-104550-1

Unknown

TE Connectivity Raychem Cable Protection

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-104550-1

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyphthalamide (PPA)
Mated Stacking Heights	11.94 mm, 13.08 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	30 VAC

104550 Series

Part	Mated Stacking Heights	Contact Shape	Number of Rows	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Insulation Color	Contact Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Material	Voltage Rating	Mounting Type	Number of Positions	Contact Type	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 5-104550-6	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	50	Female Socket	Gold
TE Connectivity Raychem Cable Protection 104550-3	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin-Lead	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	24	Female Socket	Gold
TE Connectivity Raychem Cable Protection 5-104550-9	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin	30 Ąin	0.76 Ąm	UL94 V-0	150 Ąin	3.81 Ąm	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	100	Female Socket	Gold
TE Connectivity Raychem Cable Protection 104550-4	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin-Lead	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	30	Female Socket	Gold
TE Connectivity Raychem Cable Protection 5-104550-4	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	30	Female Socket	Gold
TE Connectivity Raychem Cable Protection 104550-5	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin-Lead	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	40	Female Socket	Gold
TE Connectivity Raychem Cable Protection 5-104550-1	11.94 mm 13.08 mm	Square	2	All	0.05 in	1.27 mm	2.54 mm	0.1 in	Receptacle	Tin	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Solder	Black	Phosphor Bronze	0.37 in	9.4 mm	-65 ░C	105 ░C	Push-Pull	Polyphthalamide (PPA)	30 VAC	Surface Mount	10	Female Socket	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3996	$ 1.26

Description

General part information

104550 Series

10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
