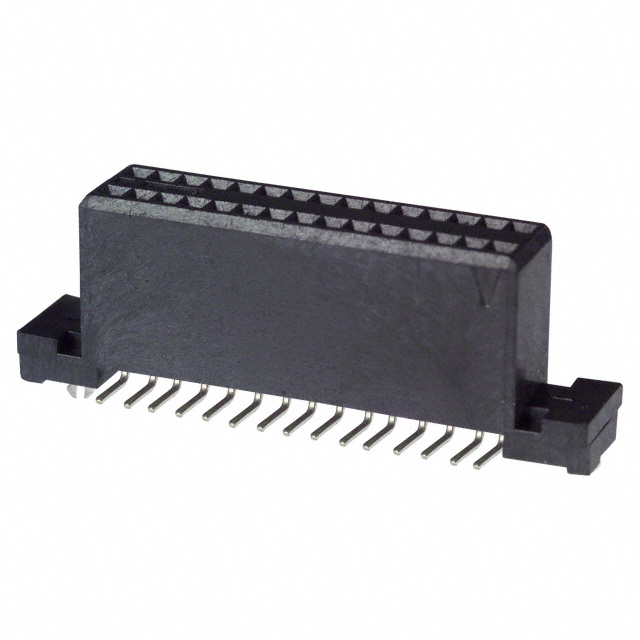

5-104550-4
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT 30POS 0.05 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-104550-4 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.37 in |
| Insulation Height | 9.4 mm |
| Insulation Material | Polyphthalamide (PPA) |
| Mated Stacking Heights | 11.94 mm, 13.08 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.42 | |
| 20 | $ 7.34 | |||
| 100 | $ 6.53 | |||
| 500 | $ 6.10 | |||
| 1000 | $ 5.44 | |||
Description
General part information
104550 Series
30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Documents
Technical documentation and resources
